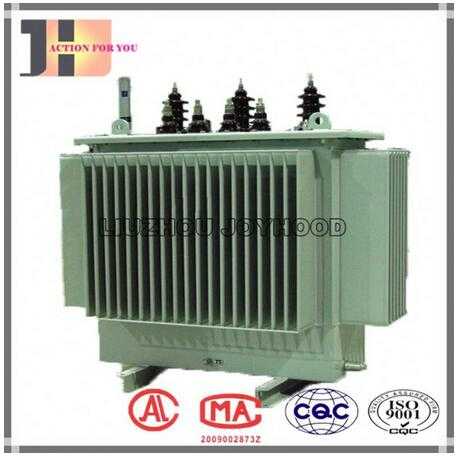

SCB9/SCB10 three phase 11KV cast resin dry type transformer

This series Dry Type Transformer Price having adopted the corrugated tank structure. It is a fully sealed, fully oiled, double windings, and no excited distribution transformer.

Product Details Company Profile

Description

Place of Origin: China (Mainland)
Brand Name: JOYHOOD
Model Number: S11-MXXX /10
Usage: Power
Phase: Three
Coil Number: 2

This series Dry Type Transformer Price having adopted the corrugated tank structure. It is a fully sealed, fully oiled, double windings, and no excited distribution transformer. Its voltage grade is under 10 kv, the capacity range are between 50kva and 1600kva, It's specifications and main technical parameters are all in conformity with the latest national standard GB 1094 and GB/T6451.

Our S11 lower loss series oil-immersed distribution transformers have reached modern advanced

level in the world.Transformers are used in the urban and rural power grid.

Features	Performance
Core of transformer are made by the high quality cold-rolled grain-oriented silicon steel sheet with laser notch, inclined by 45°full-seam construction	Reducing the load loss, load current and noise level
HV winding is made by polyvinyl acetal wire enamel wire.	Reducing axial strength during short circuit happen
Corrugate tank structure used in the transformer design	To ensure the quality of sealing
The oil will be filling in the transformer under vacuum condition	Improved the insulation strength of transformer
Oil level gauge with magnetic plate structure	It can fully isolation the oil tank and air, can ensure the quality of transformer oil not to effect by ultraviolet radiation
