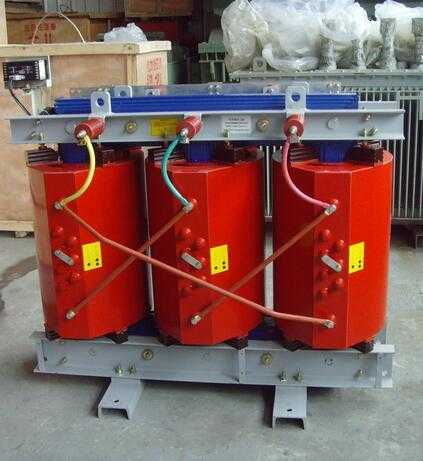

SCB9 Series 11kv Cast Resin Two-winding Dry Type Transformer

Cast resin dry type transformer is a safe, non-pollute, and flame proof product, which can be installed directly on the load center with the merits of free maintenance, easy installation, low operation cost, low loss and excellent humidity resistance.

Product Details Company Profile

Description

Model NO.: SCB9 11KV
Phase: Three
Cooling Method: Dry-type Transformer
Certification: ISO9001-2000
Frequency Characteristics: Power Frequency
Brand: L&R
Transport Package: Wooden Package
Origin: China

Application: Power
Core: Core-type Transformer
Winding Type: Two-winding Transformer
Usage: Power Transformer, Distribution Transformer
Shape of Core: Lamination
Trademark: L&R
Specification: SCB9-400/11-0.4
HS Code: 8504319000

Cast resin dry type transformer is a safe, non-pollute, and flame proof product, which can be installed directly on the load center with the merits of free maintenance, easy installation, low operation cost, low loss and excellent humidity resistance. The transformer can be operated normally under 100% humidity and put into operation without dry in advance after out of use.
This product is widely used in high-rise building, commercial centers, hospitals, laboratories, schools, theaters, offshore drilling platforms, ships and oil chemical plant, railway stations, airports, subway, mine, water conservancy coal-fired power plants, substation, etc.
