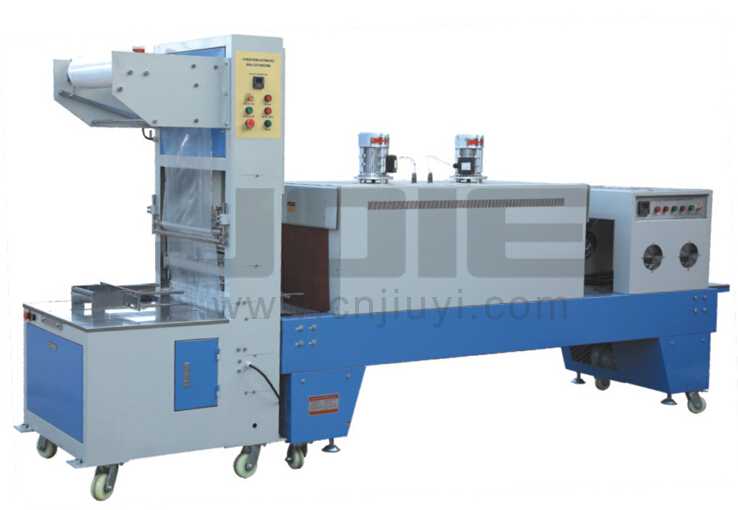

SEMI-AUTO SLEEVE SEALING AND SHRINKING PACKGER

Used to shrink large quantity products such as pop-top cans, beer and mineral water ,etc, and used in wood, steel, ceramics, electric appliance and computer industries.

Product Details Company Profile

Description

Please contact us:chensong@mec.com.cn

Used to shrink large quantity products such as pop-top cans, beer and mineral water ,etc, and used in wood, steel, ceramics, electric appliance and computer industries. Specially designed for shrinking some big and heavy products packed with PE film. The conveying belt can be made of rollers, or teflon mesh belt, or S/S mesh belt according to different requirement. Can finish the shrinking in a short time even for a big product, and it is smooth and compact after the shrink, convenient for piling, and ensures the product quality and needs for long distance transportation uses films such as PE, PVC and POF etc. top&bottom&side tunnel fixed the stainless steel heater to heat tunnel quickly and prolong the usage life. Up and down large power blower system and super cooling system to ensure the excellent effect of shrinking.

Technical parameter

Model	SM6030	ST6040 Shrinking tunnel
Max packing dimension(mm)	L500xW300xH300	W600xH400xLUnlimited
Minimum packing size	280 x 100 x 100mm
Packing Speed	6-12pcs/minute	15m/min
Voltage	220V/50HZ	380V/50Hz
Rated Power	1.8KW	20KW
Sealing time/Shrink time/Temperature	0.5-1.5S/0-0.6S/0-250℃
Width/Thickness of the Film	MA x 600mm/0.04-0.12mm
Dimension	L1030xW850xH1970	L2800 x W850 x H1580mm
Gross weight	350kg	380kg
Air pressure of working	4-8Mpa
Shrink film	PE POF PVC	PE POF PVC
