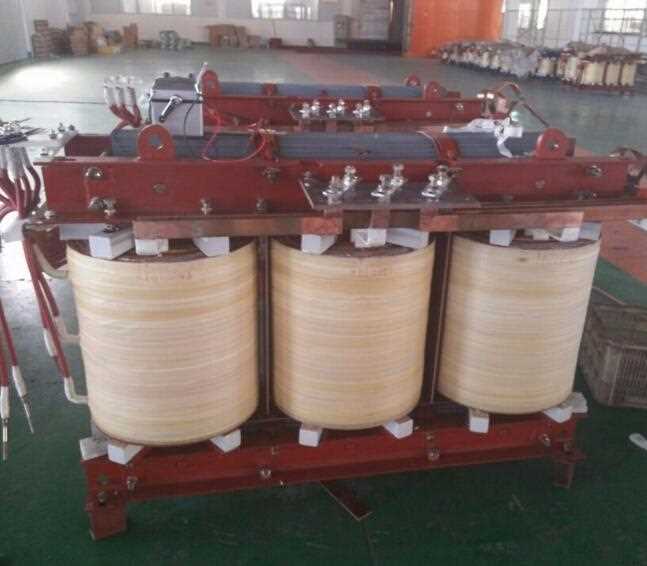

SG(B)10, SG(B)11 series non encapsulated dry type transformer

The high voltage coils use Nomex-410 insulating material, the VPI vacuum pressure impregmating international advanced equipment solventless insulation paint, sealing with high strength grade H insulation materials, and high temperature curing, ensure no partial discharge under operation condition.

Product Details Company Profile

Description

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Qilin
Model Number: SG(B) 10
Usage: Electronic
Phase: Three
Coil Structure: epoxy casting
Coil Number: Autotransformer
rated capacity: 80 KVA
high voltage: 6, 6.3, 10, 10.5, 11 KW
low voltage: 0.4 KV
connection symbol: Yyn0 or Dyn11
no-load current: 2.0%
no-load loss: 370 W
load loss 120C: 1370 W
impedance voltage: 4.0
noise level: 43

Product features:

The high voltage coils use Nomex-410 insulating material, the VPI vacuum pressure impregmating international advanced equipment solventless insulation paint, sealing with high strength grade H insulation materials, and high temperature curing, ensure no partial discharge under operation condition.

High voltage coils use high mechanical strength, good heat dissipation conditions (high and low voltage winding all use 200C and above, long-term use of Nomex insulating materials) continuous structure, avoid the multi-layered cylindrical coil layer of high voltage, thermal dissipation, easy thermal breakdown and the disadvantage of low mechanical strength, thereby improving the reliability of product.

Product performance according with GB1094.11-2007, GB/T10228-2008, IEC60076-2004.

Technical parameters:

rated capacity (KVA)	connection symbol	voltage combination and tap range			no load current (%)	no-load loss (W)		load loss 120C (W)	impedance voltage	noise level
rated capacity (KVA)	connection symbol	high voltage (KV)	hign voltage tap range (%)	low voltage (KV)	no load current (%)	Model 10	Model 11	load loss 120C (W)	impedance voltage	noise level
80	Yyn0 or Dyn11	6 6.3 6.6 10 10.5 11	±5 or ±2X2.5	0.4	2	370	320	1370	4.0	43
100					2	400	350	1570		43
125					1.4	470	410	1840		46
160					1.4	540	470	2120		46
200					1.4	630	550	2520		46
250					1.0	720	630	2750		46
315					1.0	880	770	3460		48
400					0.6	980	850	3980		48
500					0.8	1160	1000	4880		50
630					0.6	1340	1170	5870		50
630					0.6	1300	1130	5950	6.0	50
800					0.6	1520	1330	6950		52
1000					0.6	1770	1540	8120		52
1250					0.6	2090	1820	9690		53
1600					0.6	2450	2140	11730		54
2000					0.4	3320	2640	14450		54
2500					0.4	3800	3110	17170		59
