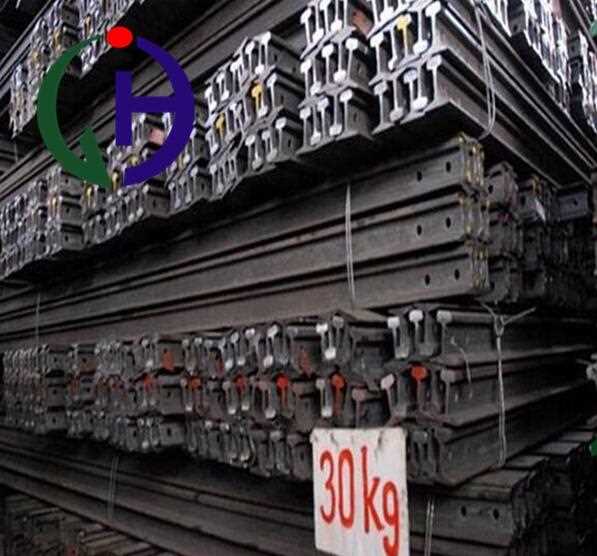

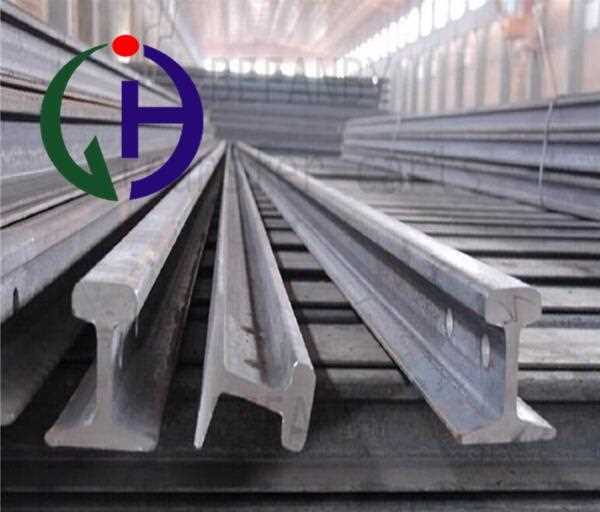

SGS standard light steel rail

Light rail is the nominal weight less than or equal to 30 kg per meter of the rail; Light rail, the low proportion of the quality requirements of rail requires only test its chemical composition, tensile strength, hardness and drop test, etc.

Product Details Company Profile

Description

Standard: AISI, ASTM, DIN, GB

Grade: Q235/BG11246-2012

Rail Heigth: 65mm-107.95mm

Bottom Width: 54mm-107.95mm

Web Thickness: 7mm-12.30mm

Head Width: 25mm-60.33mm

Length: 6-12m

Place of Origin: Hebei, China (Mainland)

Brand Name: Helei

Model Number: JH186

Type: Light Rail

Application: Railway Rail

Weight:8kg,9kg,12kg,15kg,18kg,22kg,24kg,30kg

Secondary Or Not: Non-secondary

Bolt Hole Diameter: no

LIGHT RAIL SIZE (Kg/M)	DIMENSION (MM)				Theory Weight (Kgs/M)	MATERIAL
LIGHT RAIL SIZE (Kg/M)	HEIGHT	BASE	HEAD	WEB	Theory Weight (Kgs/M)	MATERIAL
8	65.00	54.00	25.00	7.00	8.42	Q235
9	63.50	63.50	32.10	5.90	8.94	Q235
12	69.85	69.85	38.10	7.54	12.2	Q235/55Q
15	79.37	79.37	42.86	8.33	15.2	Q235/55Q
18	90.00	80.00	40.00	10.00	18.06	Q235/55Q
22	93.66	93.66	50.80	10.72	22.30	Q235/55Q
24	107.00	92.00	51.00	10.90	24.46	Q235/55Q
30	107.95	107.95	60.33	12.30	30.10	Q235/55Q
