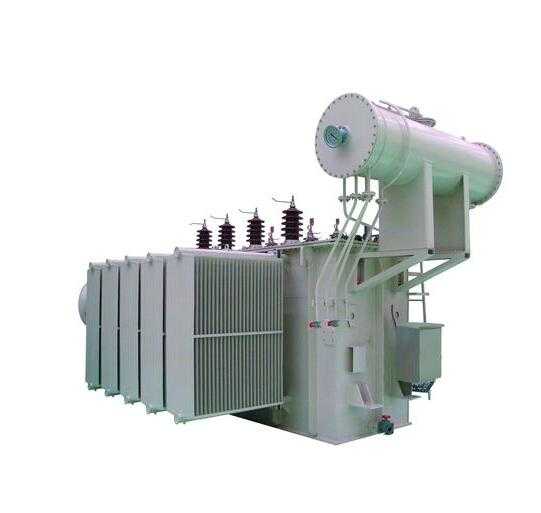

SZ9-1600/33 33kv Oil Immersed Multi-winding Power Transformer

30kV, 33kV, 35kV Oil-immersed Distribution Transformer Application: For power distribution system and large scale industrial enterprises, etc. Cooling Method: Oil-immersed Type Transformer; Trademark: Rockwell; Origin: China.

Product Details Company Profile

Description

Model NO.: SZ9-1600/33
Phase: Three
Cooling Method: Oil-immersed Type Transformer
Trademark: Rockwell
Origin: China

Application: Power, Rectifier
Core: Core-type Transformer
Winding Type: Multi-winding Transformer
Specification: IEC/ANSI/GB
HS Code: 8504231100

30kV, 33kV, 35kV Oil-immersed Distribution Transformer
Application: For power distribution system and large scale industrial enterprises, etc.
Standards: IEC 60076-1, IEC 60076-2, IEC 60076-3, IEC 60076-5; ANSI, IEEE, AS, etc.
Parameters:
Rated Voltage: 30kV, 33kV, 35kV @50/60Hz
Rated Capacity: 50-75000kVA.
Features:
High security and reliability in operation.
Economic and efficient to reduce network loss and working cost.
High short circuit strength and insulating strength.
Low temperature rise. Low noise.
Customized transformers are available on your requirement.
Competitive short delivery time.
Rated capacity (kVA): 1000 to 31500
Rated voltage and tapping range:
- HV: 35 to 8.5
- Tapping range: ± 3× 2.5
- LV: 6.3 to 11
Vector group: Yd11, YNd11
No load losses (kW): 1.3 to 21
On load losses (kW): 11.1 to 117
Impedance voltage (%): 6.5 to 8.0
No load current (%): 1.1 to 0.45
* All the data are only examples for your reference.
* Customized transformers are available according to your requirements.
