Scissor trench lift

Model Number:HY-BSDG-A-8235 please contact us: yx@mec.com.cn

Description

Alignment scissor lift apply to small type of vehicle for four wheel alignment and vehicle inspection, repair and maintenance, the characteristics as follows:

  1. In-ground mounted, occupied little space, easy to operate, good stable performance.
  2. Electric air lock, safety and reliable.
  3. Hydraulic system adopts the advanced integrated valve plate oil and imports of seal parts.
  4. When the power off, you can drop out the car manually.

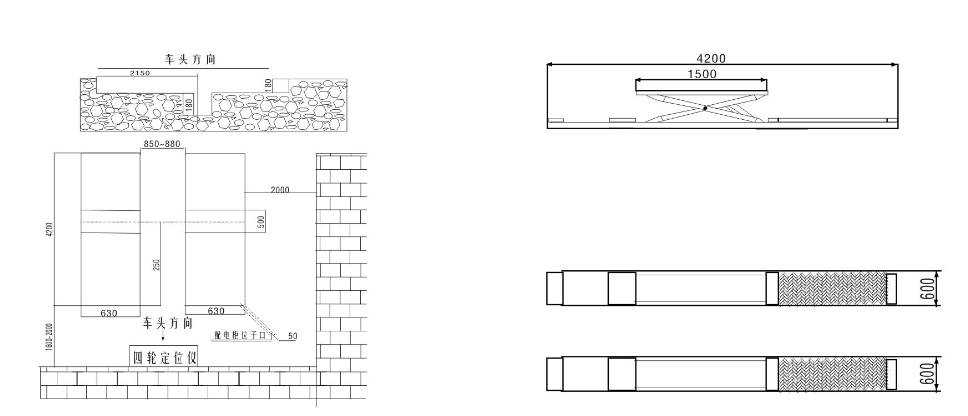

Technical specifications:

Lifting Capacity 3500kg
Lifting Height 450mm
Lifting Speed 1.2s
Motor Power 2.2kw-380v or 2.2kw-220v
Platform Length 4200mm
Platform Width 600mm
Air Supply Pressure 6-8kg/cm²
Weight 984kg
