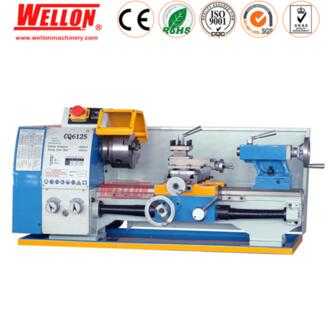

Small Mini Bench Metal Turning Lathe Machine CQ6125C

·Precision ground and supersonic frequency hardened bed ways.It features with high accuracy and well-resisting ·The spindle is supported with precision roller bearing ·Safety magnetic switch or lock key switch

Product Details Company Profile

Description

Condition: New Type: Horizontal CNC or Not: Normal Automatic Grade: Semi-Automatic Max. Swing Diameter: 250mm Place of Origin: Shandong, China (Mainland) Brand Name: wellon Model Number: CQ6125C Voltage: 380V, 50Hz, 3 Phase Power(W): 550W Dimension(L*W*H): According to specific model Weight: According to specific model Certification: CE, ISO ,SGS After-sales Service Provided: Overseas third-party support available Spindle bore: 21mm Bed width: 135mm MAX. SWING OVER CARRIAGE: 150mm Distance between centers: 750mm
Packaging & Delivery

Packaging Details: Polywood case
Delivery Detail: 30 days
Product Description

Features:
·Precision ground and supersonic frequency hardened bed ways.It features with high accuracy and well-resisting
·The spindle is supported with precision roller bearing
·Safety magnetic switch or lock key switch

Model
CQ6125C
CQ6125C
CQ6125C
Swing over bed
Φ250mm
Swing over cross slide
Φ150mm
Max. length of workpiece
400/550/750mm
Width of bed
135mm
Spindle bore
Φ21mm
Taper of spindle bore
M.T.#3
Range of spindle bore
125-2000rpm
Taper of tailstock quill
M.T.#2
Range of metric threads
0.1-2.5mm
Range of imperial threads
8-56 T.P.I
Range of longitudinal speeds
0.10-0.20 mm/rev
Cross slide travel
115mm
Compound rest travel
70mm
Max. travel of tailstock quill
65mm
Motor power
550w
Packing size
1045×560×565
1155×560×565
1355×560×565
N.W
105kg
109kg
119kg
G.W
145kg
149kg
159kg
Foot stands (L×W×H)
500mm×300mm×750mm
Foot stands(N.W)
44kg
Foot stands(G.W)
48kg
