Two Post Car Lift MT-FCTP35B

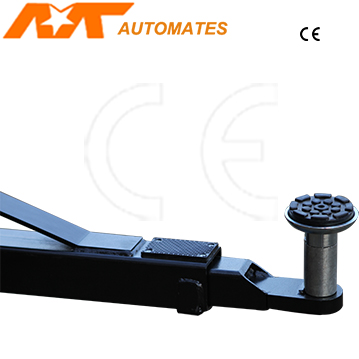

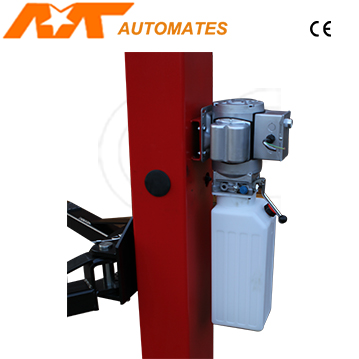

Clear floor design make easy working under beneath the vehicle; By two cylinder,plate and wire rope chain balance system lifting off and landing smooth; Hydraulic power unit configuration throttling device,can always adjust the rate of decline; Manual lock release from two sides; With 24V limit switch.Asymmetric column allows wider drive through clearance; Rubber support pad with spiral adjust the height and in stages adjust the height,optional; Rubber pad door-opening protection;

Product Details Company Profile

Parameter

Lifting capacity : 4000kg

Lifting height : 1800mm

Motor power : 2.2kw

Min.height : 120mm

Overall height : 3730mm

Lifting time : 40s-50s/50s

Overall width : 3340mm

Weight : 650kg

Width between columns : 2850mm

Power Supply : 110V/230V/400V
