Ultra-thin pulley scissor lift
Model Number:HY-JSDB-A-8140
please contact us:
yx@mec.com.cn
Description
Features:
- This kind of scissor lift apply to various level of automobile of professional high-precision four wheel alignment and vehicle inspection, repair and maintenance.
- The machine’s mainly hydraulic parts are composed of Italy and Germany’s high quality imported components, adopting dual gear, hydraulic and electrical tripling protection,safe,reliable, running stable.
Technical specification:
| Max.Lifting Capacity |
4000kg |
| Lifting Height |
Main:1850mm Jack:450mm |
| Min.Height |
190mm |

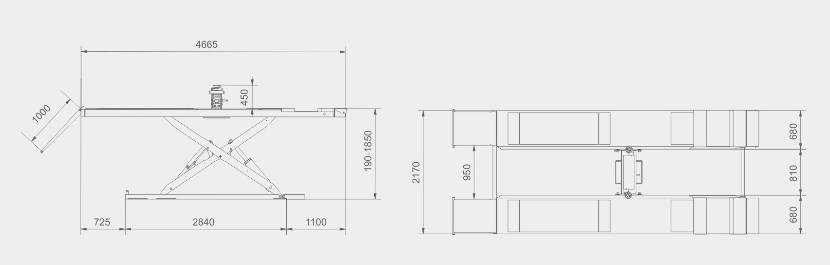

| Outline Dimensions |
L4665xW680xH190mm |
| Platform Width |
680mm |
| Lifting Time |
≤60s |
| Motor Power |
3.0kw |
| Air Supply Requirments |
0.6-0.8Mpa |
| Weight |
2030kg |
| Oil pressure rating |
24-26Mpa |
| |
|
