Ultra-thin scissor lift

Model Number:HY-JSDB-B-8140 please contact us: yx@mec.com.cn

Description

  1. This kind of hydraulic four wheel positioning lift,apply to various level of automobile of professional high-precision four wheel alignment and vehicle inspection,repair and maintenance.

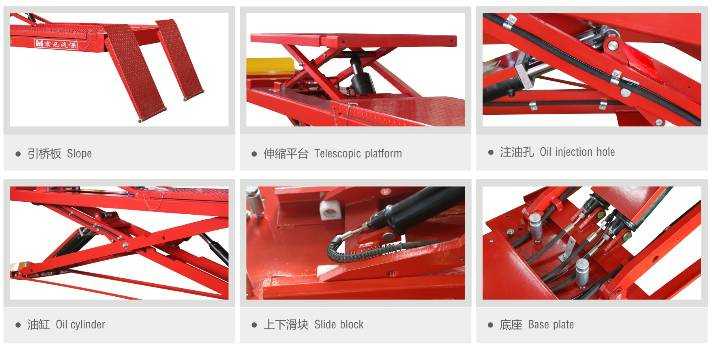

  2. The machine’s mainly hydraulic parts are composed of Italy and Germany high quality imported componets,adopting dual gear,hydraulic and electrical tripling protection,safe,reliable,synchronous stable running.Using high performance plate produced.

Technical specifications:

Lifting Capacity 4000kg
Lifting Height           Main:18500mm  Jack:420mm
Min.Height 180mm
Platform Length 4530mm
Platform Width 645mm
Lifting Time ≤60s
Motor Power 2.2kw
Air supply Pressure        0.6-0.8Mpa
Weight 2320kg

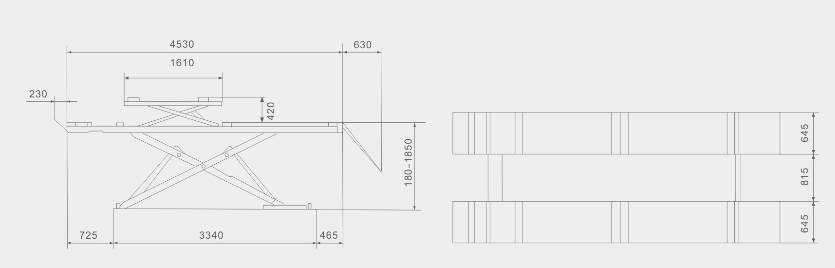

Outline Dimensions

L4530xW645XH180mm
