Ultra thin scissor lift

Model number:HY-JSXB-A-3530 please contact us: yx@mec.com.cn

Description

  1. Ultra thin structure, surface-installation ,the initial landing height is 105mm,occupied small space.
  2. The Italy original imported hydraulic pump valve and electrical components.
  3. Double cylinder drive,safe and stable synchronization.
  4. Meet the needs of different vehicles repair and detection.

Technical specifications:

Lifting Capacity 3000kg
Lifting Height 1850mm
Min.Height 105mm
Lifting time ≤60s
 Motor Power  3ph:3.0kw 380v 50/60hz
   1ph:3.0kw 2p 220v 50/60hz
 Air supply pressure  0.6-0.8Mpa
 Weight  850kg

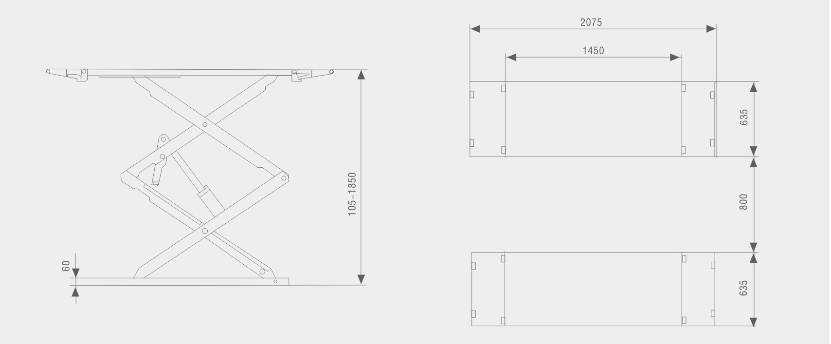

 Outline Dimensions  L1450xW635xH105mm
