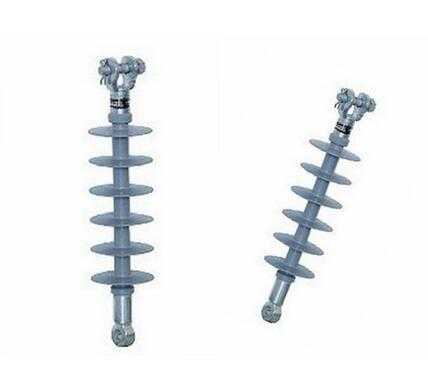

VIC 33kv 70kn Suspension Polymer Silicone Rubber Insulator

OEM: Accept; Name: Silicone Rubber Insulator; Specification: ANSI; HS Code: 8535900090.

Description

Model NO.: Polymer Insulator
Material: Polymer
Type: B Type Insulator
Connection Method: Trough Type
Certification: CE, ISO9001
Brand: Vic
OEM: Accept
Name: Silicone Rubber Insulator
Specification: ANSI
HS Code: 8535900090

Application: High-voltage, Low-voltage
Structure: Suspension Insulator
Usage: High Voltage Power Transmission
Size of Bearing Capacity: 70KN
Color: Gray
Polymer: Insulator
Size: as You Required
Trademark: VIC
Origin: Wuniu, Wenzhou, Zhejiang, China

Main technical parameters as follow table.

Product type	Rated voltage (kV)	Rated mechanical bending load (kN)	Height (mm)	Insulation distance (mm)	Min creepage distance (mm)	Diameter of shed (mm)	Lightning impulse withstand voltage peak volume (kV)	P.F withstand voltage(virtual value) (kV)
FXBW-33/70	33	70	560	380	1130	92/62	230	95
