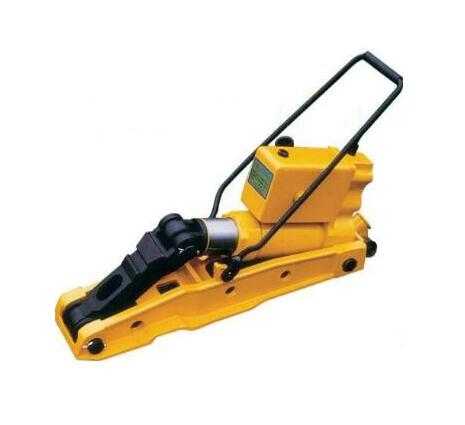

YQB-250 Series hydraulic steel rail lifting and rail lining machine
Max.Lifting pressure: 250kN;
Maximum dialing pressure: 150kN;
Initial lifting pressure: 85KN;
Maximum lifting height: 135mm;
Description
- Type: Hydraulic lifting&lining machine
- Material: Steel
- Dimensions (L x W x H) (mm): 500mm * 180mm * 240mm
- Place of Origin: Shandong, China (Mainland)
- Brand Name: Xinmei
- Model Number: YQB-250
- Product name: YQB-250 hydraulic steel rail lifting and rail lining machine
- Max.Lifting pressure: 250kN
- Maximum dialing pressure: 150kN
- Initial lifting pressure: 85KN
- Maximum lifting height: 135mm
- Max.Lifting weight: 90mm
- Max. oil pressure for design work: 38.4Mpa
- The oil cylinder reciprocating: 2.5mm
- Operation force: 300N
- Weight: 24kg
|
Model
|
YQB-250
|
|
Max.Lifting pressure
|
250kN
|
|
Maximum dialing pressure
|
150kN
|
|
Initial lifting pressure
|
85KN
|
|
Maximum lifting height
|
135mm
|
|
Max.Lifting weight
|
90mm
|
|
Max. oil pressure for design work
|
38.4Mpa
|
|
The lifting height of the oil cylinder reciprocating
|
2.5mm
|
|
Operation force
|
300N
|
|
Weight
|
24kg
|
|
Dimensions
|
500 *180 *240mm
|
