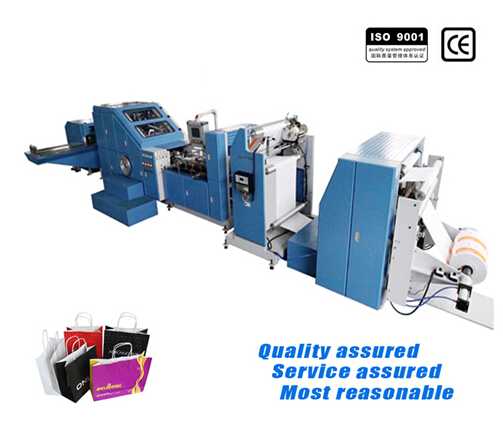

This machine is specially designed to make flat bottom food paper bag in one process from roll paper,deviation rectifying,paper bags with film window and perforate,edge gluing&folding,snapping,bottom gluing&folding,with very stable performance,easy operation and almost Zero defective rate.

Technical Parameter:

Max roll paper width:            900mm

Max diameter of roll paper:    1200mm

Inside diameter of paper:       76mm

Paper bag width:                  50-280mm

Paper bag length:                 50-500mm

Paper gram:                        35-170gsm

Speed of bags:                    100-400pcs/min

Line speed:                         100m/min

Total power:                       15KW

Weight:                              7000KG

Overall dimensions:              8500*2100*2600mm

Configuration of Equipment:

1.Shaftless roll paper feeding .

2.It adopts automatic error correction system.

3.It adopts the original German electronic control system.

4.With servo motor system

5.Man-machine touch screen interface.

6.With automatic detection of the fault.

7.With full automatic refueling system.

8.With the function of full automatic delivery system and counting system.
