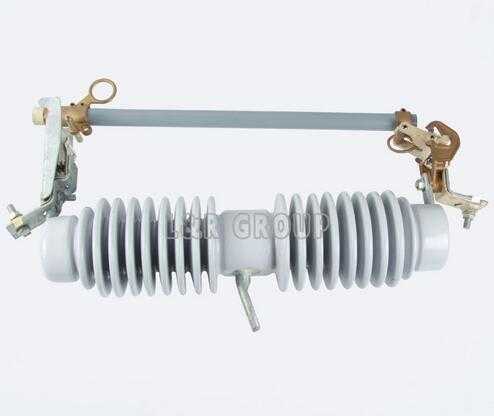

Zc3-15 Series Lead Wire Type Pointed Tubular Porcelain Fuse Cutout
Type: Auto Fuse Holder;
Size of Fuse: Large Fuse Holder;
Environmental Protection: Environmental Protection Fuse Holder.
Description
- Model NO.: ZC3-15
- Material: Porcelain
- Type: Auto Fuse Holder
- Size of Fuse: Large Fuse Holder
- Environmental Protection: Environmental Protection Fuse Holder
- Fusing Speed: F
- Melt Tube Structure of Fuse Cutout: Fiberglass
- Rated Current of Cutout Fuse: 100A-200A
- Trademark: L&R
- Specification: see below dimension
- HS Code: 8535100000
- Usage: Transport System
- Installation: Lead Wire Type
- Shape: Pointed Tubular
- Form of Installation: Insurance Tube Holder
- Execution Standard: National Standard
- Brand: L&R
- Breaking Current of Drop out Fuse: 5ka,12.5ka,16ka
- Leakage Distance of Fusegear: 325.1mm-769.6mm
- Transport Package: Carton
- Origin: China
|
Rated Voltage
(kV)
|
BIL
(kV)
|
A
(mm)
|
B
(mm)
|
C
(mm)
|
D
(mm)
|
E
(mm)
|
F
(mm)
|
Leakage Distance
(mm)
|
Weight
(kg)
|
|
12(15)
|
125
|
331.4
|
169.3
|
202.4
|
462.8
|
124.9
|
412.8
|
325.1
|
6.58
|
|
24(27)
|
125
|
341.4
|
179.3
|
202.4
|
462.8
|
134.9
|
412.8
|
325.1
|
6.58
|
|
24(27)
|
150
|
341.4
|
179.3
|
202.4
|
462.8
|
134.9
|
412.8
|
457.2
|
9.08
|
|
24(33)
|
200
|
435.1
|
187.5
|
261.1
|
548.4
|
165.1
|
522.2
|
665.5
|
10.1
|
|
24(36)
|
200*
|
435.1
|
187.5
|
261.1
|
548.4
|
165.1
|
522.2
|
769.6
|
10.4
|
