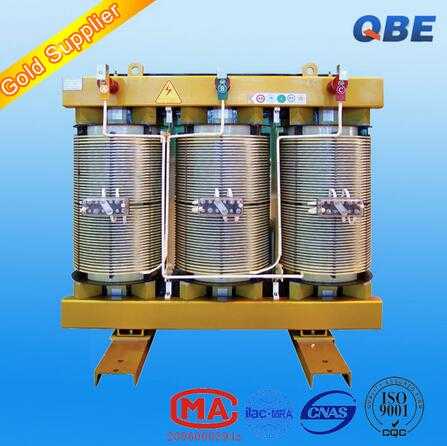

high voltage insulation no-encapsulated-winding distribution transformer
Coil Number: Autotransformer;
Frequency: 50/60HZ;
Rated voltage: 10kV-35kV;
Rated capacity: 100-2500kva;
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: QBE
- Model Number: SGB10
- Usage: Power
- Phase: Three
- Coil Structure: Toroidal
- Coil Number: Autotransformer
- Frequency: 50/60HZ
- Rated voltage: 10kV-35kV
- Rated capacity: 100-2500kva
|
Product Name
|
high voltage insulation no-encapsulated-winding distribution 10kv 630kva transformer
|
|
Material
|
copper winding
|
|
High voltage
|
6/6.3/6.6/10/10.5/11/13.8~220kv
|
|
Low voltage
|
0.4 kv
|
|
High voltage tapping rang
|
±5% or ±2x2.5%
|
|
Capacity
|
10-2500 kva
|
|
Connection symbol
|
Yyno or Dyn11
|
|
Carefully designed coil structure and the vacuum pressure impregnation process make SGB10 transformer partial discharge is extremely small less than or equal to 5 PCS, and will be used in the whole process, no crack
|
