sesame oil cold press machine with long durability

This machine can be used for process many kinds of raw material: sesame, walnut kernel, peanut, pine seed (better to get rid of the shell), almond, spricot kernel, perilla, cocoa bean, linseed and other oil crops.

Product Details Company Profile

Description

    Condition: New
    Usage: Sesame Oil
    Type: Cold & Hot Pressing Machine
    Automatic Grade: Automatic
    Production Capacity: 150-300kg/h
    Place of Origin: Henan, China (Mainland)
    Brand Name: Effort

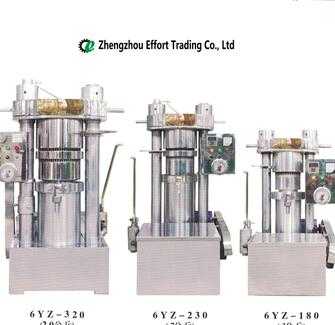

    Model Number: 6YZ-230
    Voltage: 220V/380V/440V
    Power(W): 1.5KW
    Dimension(L*W*H): 1700*1100*1600mm
    Weight: 1200kg
    Certification: ISO
    After-sales Service Provided: Engineers available to service machinery overseas
    Application range: sesame, walnuts, almonds
    Color: Customer Required
    Price: Competitive
    Raw material: Sesame, peanuts, almonds, walnut, pine nuts, pumpkin seeds
    Name: sesame oil cold press machine

Packaging & Delivery
Packaging Details:    Standard export wooden case for LCL
Delivery Detail:    7-11 days after order confirmation

Competitive price sesame oil cold press machine, hydraulic oil press with long durability

1.Application scope:

The automatic hydraulic oil press made by Zhengzhou Effort has many advantages: easy to operate, high oil press rate, rare to replace wearing parts, so this oil press is the most advanced equipment which can replace of the manual operation of the sesame oil. This machine can press at least 2 to 7 kilograms per batch, the time is about 4 to 6 minutes, so it is very suitable for the citizens who live in the big and medium cities because they want get the high quality of oil of spending money. It is also can be used in the countryside, because the speed of oil pressing is fast so people can bring their oil raw material to press oil. In this way, they can be assured of the purity of their oil.

This machine can be used for process many kinds of raw material: sesame, walnut kernel, peanut, pine seed (better to get rid of the shell), almond, spricot kernel, perilla, cocoa bean, linseed and other oil crops.

2. Structure:

This machine mainly includes three parts:

1. Main engine   2. Hydraulic system    3.electrical system

The following is the specific introduction:

1. main engine:

Main engine includes base,upright,top plate,oil drip pan,nut and etc which is one of the main parts. When the oil material is put into the assembly of the press boring,then it being driven up by the oil cylinder piston ,oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.
