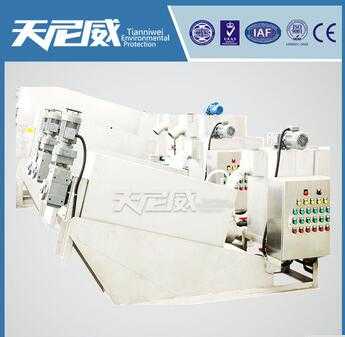

sludge liquid solid separator

Sludge dewatering machine can be widely used in municipal wastewater treatment engineering and petrochemical, light industry, chemical fiber, paper, pharmaceutical, leather and other industrial water treatment system. The actual operation proves that the stack type sludge dewatering machine can create considerable economic and social benefits for customers.

Product Details Company Profile

Description

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: tianniwei
    Model Number: tnw101~tnw404
    Material: SS304 Stainless Steel
    Application: Water Treatment
    Service Life: >10 years
    Certification: CE, ISO9001
    DS treatment capacity: 6-600kg/h
    Press Type: Screw Type

Packaging & Delivery
Packaging Details:    Packed in wooden cases,International standard packing
Delivery Detail:    15 days later
Product Description
sludge liquid solid separator

The utility model has the advantages of wide use, no blockage, simple operation, high durability, full automation, energy saving and environmental protection
Product Detail
Material   SS304 Stainless Steel
Application   Water Treatment
Service Life   >10 years
Certification   CE, ISO9001
DS treatment capacity   6-600kg/h
Press Type   Screw Type
Product introduction

Sludge dewatering machine can be widely used in municipal wastewater treatment engineering and petrochemical, light industry, chemical fiber, paper, pharmaceutical, leather and other industrial water treatment system. The actual operation proves that the stack type sludge dewatering machine can create considerable economic and social benefits for customers.

Working principle editor

1, the concentration:

when the screw drive shaft rotation, located in the periphery of the drive shaft of the multiple solid active stack relative movement, in the gravity, the water from the relative movement of the chip gap filter out, to achieve rapid concentration.

2, dehydration:

after the concentrated sludge dewatering with the rotation of the screw shaft to move forward along the direction of exports; mud cake, the screw shaft pitch becomes smaller, the gap between the ring and the ring has gradually become smaller, the spiral cavity volume shrinking; at the outlet pressure plate under the action of internal pressure gradually increased, and promote in order to promote the continuous operation of the spiral shaft, sludge water squeezed out, the cake solid content increasing, finally realize the continuous dehydration of sludge.

3, self cleaning:

the screw shaft rotation, promote the continuous rotation swimming ring, mobile devices rely on between the fixed ring and swimming ring to achieve self cleaning process is continuous, so skillfully to avoid clogging problems of traditional dehydration machine.

Product advantage

Wide application

1 Application of sludge in municipal sewage, food, beverage, chemical, leather, paper, printing and dyeing, welding materials, pharmaceutical and other industries.

2 suitable for high and low concentration sludge dewatering. Low concentration (2000mg/L~) of sludge dewatering, without the construction of concentrated pool and storage pool, reduce construction costs, reduce the production of phosphorus release and anaerobic odor.

Small design

1 compact design, dewatering machine which includes an electric control cabinet, metering tank, mixing tank and flocculation dewatering machine body.

2 small footprint, easy maintenance and replacement; small weight, easy to carry.

Not easy to plug

1 self cleaning function. The utility model does not need to be used for preventing the clogging of the filter groove, and the water consumption is reduced, and the inner circulation burden is reduced.

2 good at oil sludge dewatering.
