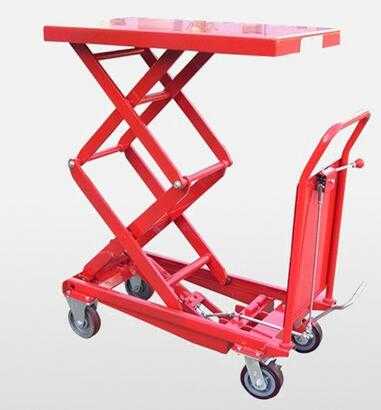

Jinhua ryder SLC350D Series Optional Manual hinge Lift Table
wheel diamater: 150mm;
factory: jinhua ryder hinge lift table;
color: optional hinge lift table;
caster wheel: 150*50mm;
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: Heami/Jinhua ryder
- Model Number: SLC350D(CYT-D350)
- Lift Mechanism: Scissor Lift, hinge lift table
- Lift Drive / Actuation: Foot
- Power: hinge lift table
- Rated Loading Capacity: 350kg
- Min. Lifting Height: 410mm
- Max. Lifting Height: 1400mm
- Table Size: 900*540*55mm
- Overall Dimensions: 900*540*1005mm
- Weight: 118kg hinge lift table
- Certification: CE GS TUV
- Warranty: 12 month hinge lift table
- After-sales Service Provided: No overseas service provided
- product name: SLC350D customized hinge lift table
- material of wheel: PU or nylon hinge lift table
- weight: 118kg
- lifting height: 990mm
- packing size: 1020*570*440mm
- wheel diamater: 150mm
- factory: jinhua ryder hinge lift table
- color: optional hinge lift table
- caster wheel: 150*50mm
|
Item(conventional)
|
|
CYT-D350
|
|
Capacity
|
Q(kg)
|
350
|
|
Max.height
|
h12(mm)
|
1400
|
|
Lower height
|
h13(mm)
|
410
|
|
Lifting Height
|
h3(mm)
|
990
|
|
Size of platform
|
l×b5×s(mm)
|
900×540×55
|
|
Distance from ground
to handle bar
|
h14(mm)
|
1005
|
|
Pedal cycles to Max.height
|
|
≤55
|
|
Wheel diamater
|
d(mm)
|
150
|
|
weight
|
kg
|
118
|
|
packing size
|
mm
|
1020×570×440
|
