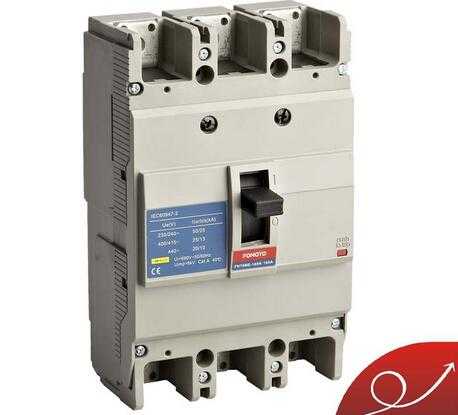

160A 3poles Higher Breaking Capacity Designed Moulded Case Circuit Breaker
1. Brand: FONOTO, OEM, ODM;
2. HS Code: 8536200000;
3. Packing: Export standard Carton;
4. Production Capacity: 5000PCS/month.
Description
- Model NO.: FNT9M-160
- Operation: Manual Type
- Arc-extinguishing Medium: Air
- Structure: MCCB
- Type: Circuit Breaker
- Certification: ISO9001-2000, CE, CB, CCC
- Ui 690VAC: Uimp 6kv
- 1.6kgs Weight: Thermal Magnetic MCCB
- Trademark: FONOTO
- Specification: 125A 3P
- HS Code: 8536200000
- Breaking Capacity: Low Voltage Circuit Breakers
- Speed: High-Speed Circuit Breaker
- Installation: Fixed
- Poles Number: 3
- Function: Circuit-Breaker Failure Protection
- 50/60Hz: High Breaking Capacity
- Dimension(3p): 105X165X68(mm)
- Fixed MCCB: Most Economic MCCB
- Transport Package: Standard Exporting Packing
- Origin: China
Model No.: FNT9M-160H
1. Brand: FONOTO, OEM, ODM
2. HS Code: 8536200000
3. Packing: Export standard Carton
4. Production Capacity: 5000PCS/month
5. Sampls available
6. Certificates: CE(LVD), CCC, ISO9001 etc.
Feature:
Most economic MCCB;
More suitable for installation & application;
All parts are made by us, with fresh new materials & moulds.
Main Technical data of MCCB FNT9M-160H
Circuit breaker application: Distribution
Poles description: 3P
Protected poles description: 3t
Network type:
AC
DC
Network frequency; 50/60 Hz
[In] rated current: 250 A ( 40 °C )
[Ui] rated insulation voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-2
[Ue] rated operational voltage:
250 V DC conforming to IEC 60947-2
550 V AC 50/60 Hz conforming to IEC 60947-2
Circuit breaker rating code: H
Breaking capacity:
Icu 85kA 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
Icu 36kA 400/415 V AC 50/60 Hz conforming to IEC60947-2
Icu 25kA 440 V AC 50/60 Hz conforming to IEC60947-2
[Ics] rated service breaking capacity:
Ics 43kA 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
Ics 18kA 400/415 V AC 50/60 Hz conforming to IEC60947-2
Ics 13kA 440 V AC 50/60 Hz conforming to IEC60947-2
Suitability for isolation Yes conforming to IEC60947-2
Utilisation category: Category A
Trip unit technology: Thermal-magnetic
Trip unit rating: 250 A ( 50 °C )
Protection type:
Overload protection
Short-circuit protection
Pollution degree:
3 conforming to IEC 947-1
3 conforming to IEC 60664-1
Complementary
Control type: Toggle
Mounting mode: Fixed
Mounting support: Backplate
Upside connection: Front
Downside connection: Front
Mechanical durability: 10000 cycles
Electrical durability: Category A: 5000 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
Connection pitch: 35 mm
Local signalling: Positive contact indication
Neutral protection setting: Without protection
Earth-leakage protection: Without
Height: 165 mm
Width: 105 mm
Depth: 60 mm
Environment
Standards CSA 22-2
GB 14048.2
IEC 60947-2
JIS C8201-2-2
NEMA AB1
UL 508
IP degree of protection: IP20 conforming to IEC 60529
IK degree of protection: IK07 conforming to IEC 62262
Ambient air temperature for operation: -25...70 °C
Ambient air temperature for storage: -35...85 °C
RoHS EUR conformity date: 0801
RoHS EUR status: Compliant
|
Compliance with standards:
|
|
International standards:
|
|
IEC 947-1: General(GB/T 14048.1);
|
|
IEC 947-2: Circuit Breaker(GB/T 14048.2);
|
|
IEC 947-4: Contractors and Motor Starters (GB/T 14048.4);
|
|
IEC 947-5: Control Devices and Switches; Automatic Control Element(GB/T 14048.5)
|
|
National Standards:
|
|
GB 14048.1 General;
|
|
GB 14048.2 Circuit Breaker.
|
|
Working condition:
|
|
Protection: Power distribution system protection, Motor protection
|
|
Altitude: 2000m (690VAC)... 5000m(440VAC)
|
|
Payment:
|
|
1. We usually use T/T. 30% deposit and 70% before shipping.
|
|
2. L/C also acceptable2
|
|
Warranty:
|
|
1. We provide 18 months warranty.
|
