Feature:

Most economic MCCB;

More suitable for installation & application;

All parts are made by us, with fresh new materials & moulds.

1. Brand: FONOTO, OEM, ODM

2. HS Code: 8536200000

3. Packing: Export standard Carton

4. Production Capacity: 5000 Per Week

5. Sampls available

6. Certificates: CE(LVD), CCC, ISO9001 etc.

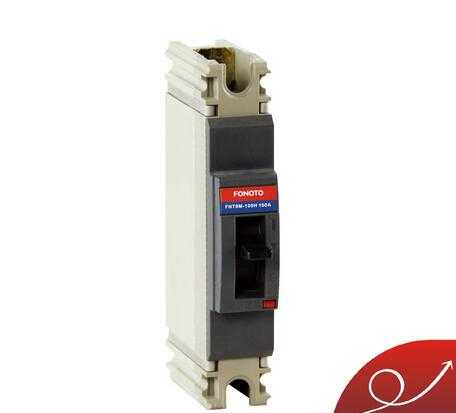

Main Technical data of MCCB FNT9M-100H

Model No.:  FNT9M-100H

Circuit breaker application: Distribution

Poles description: 1P

Protected poles description: 1t

Network type:

AC

DC

Network frequency: 50/60 Hz

[In] rated current: 100 A ( 40 °C )

[Ui] rated insulation voltage: 690 V AC 50/60 Hz conforming to IEC60947-2

[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC60947-2

[Ue] rated operational voltage:

125 V DC conforming to IEC 60947-2

415 V AC 50/60 Hz conforming to IEC 60947-2

Circuit breaker rating code: H

Breaking capacity:

Icu 650kA 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2

Icu 30kA 400/415 V AC 50/60 Hz conforming to IEC60947-2

Icu 20kA 440 V AC 50/60 Hz conforming to IEC60947-2

[Ics] rated service breaking capacity:

Ics 30kA 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2

Ics 7kA 400/415 V AC 50/60 Hz conforming to IEC60947-2

Ics 5kA 440 V AC 50/60 Hz conforming to IEC60947-2

Suitability for isolation: Yes conforming to IEC 60947-2

Utilisation category: Category A

Trip unit technology: Thermal-magnetic

Trip unit rating: 100 A ( 50 °C )

Protection type:

Overload protection

Short-circuit protection

Pollution degree:

3 conforming to IEC 947-1

3 conforming to IEC 60664-1

Complementary

Control type: Toggle

Mounting mode: Fixed

Mounting support: Backplate

Upside connection: Front

Downside connection: Front

Mechanical durability: 8500 cycles

Electrical durability: Category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2

Connection pitch: 25 mm

Local signalling: Positive contact indication

Neutral protection setting: Without protection

Earth-leakage protection: Without

Height: 130 mm

Width: 25 mm

Depth: 60 mm

Environment Standards: GB 14048.2, IEC 60947-2, JIS C8201-2-2

NEMA AB1

IP degree of protection: IP20 conforming to IEC 60529

IK degree of protection: IK07 conforming to IEC 62262

Ambient air temperature for operation: -25...70 °C

Ambient air temperature for storage: -35...85 °C
