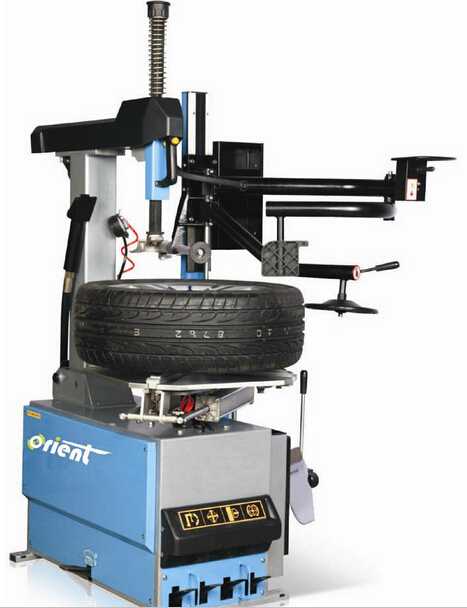

2017 Full Automatic Tyre Changer

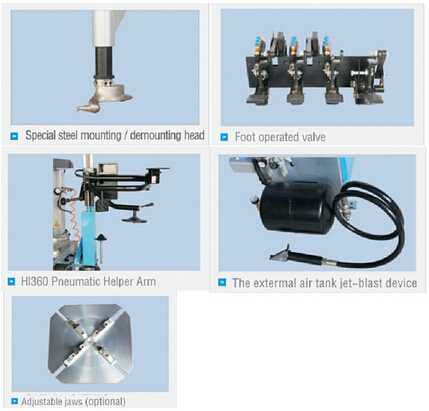

Tilting column and pneumatic locking mount & demount arm. Six-axis oriented tube extends to 270mm can prevent effectively deformation if six-aixs;foot valve fine structure can be demounting as a whole,operation stably and reliably,and easy maintenance;special steel mount &demount head,super hardness,reduce the frictions as well as corrosion.

Product Details Company Profile

Description

Model NO.: ORT2422AC+HL360

Power Source: Pneumatic

Automatic: Automatic

Certification: CE, ISO

Inside Clamping: 12"-24"

Trademark: Orient

Specification: CE & ISO

HS Code: 8479899990

Structure: Vertical

Type: Simple Disassembly

Standard: Standard

Condition: New

Body Color: Blue

Transport Package: Standard Export Packaging

Origin: China

Motor Power	1.1kw/0.75kw
Power Supply	110v/220v/240v/380v/415v
Max. Wheel Diameter	44"/1120mm
Max. Wheel Width	14"/360mm
Outside Clamping	10"-21"
Inside Clamping	12"-24"
Air Requirement	8-10bar
Rotation Speed	6rpm
Bead breaker force	2500kg
Noise level	<70dB
Weight	258kg
Package size	1180980980mm 13301080300mm
Quick inflation device	Included
