Description
- Model NO.: S13MRL
- Phase: Three
- Cooling Method: Oil-immersed Type Transformer
- Certification: ISO9001-2000, ISO9001, CCC
- Frequency Characteristics: Power Frequency
- Brand: Gse
- Radiator Design: Can Be Customized
- Install Method: Pole-Mounted Type
- Apply Standard: IEC60076/ANSI/GB
- Transport Package: Wooden/Plywood Case
- HS Code: 8504901100
- Application: Power, Electronic
- Core: Core-type Transformer
- Winding Type: Two-winding Transformer
- Usage: Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer
- Shape of Core: Ring
- Power Lose: No-Load Loss Is 30% Lower Than That of IEC Standar
- Material: Oil, CRGO, Copper
- Color: White, Green or Customized
- Trademark: GSE
- Origin: Shandong China
Voltage grade: 10KV/0.4~0.63~1.14KV ;
capacity: 30-2500KVA

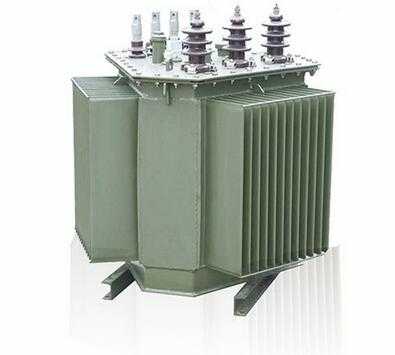

S13-M.RL three-dimensional roll-core transformer series, the whole body is a three-dimensional triangular shape. And there are taut rods all around and in the central. With top and bottom frames, insulation, laminated wood, it is constituted as a whole body. The high and low voltage coils are circular and concentric winding, which can effectively resist the axial mechanical stress of sudden short circuit. It has good anti-short circuit ability.
Compared the S13 - M.RL three-dimensional roll-core transformer series with ordinary transformers, no-load current is reduced by 75% and no-load loss is reduced by 30% in average. And the comprehensive energy saving is up to 15% - 30%
Technical Data
|
Rated Capacity
(KVA)
|
Rated Voltage
|
Connection Symbol
|
No-load Loss
(KW)
|
No-load Current
(%)
|
75ºC
(W)
Load-Loss
|
Short Circuit Impedance
(%)
|
Weight
(Kg)
|
Boundary Dimension (mm)
|
Sound power Level
(db)
|
|
|
|
|
H.V.
|
M.V.
|
L.V.
|
Equipment
|
L*W*H
|
|
|
(KV)
|
(KV)
|
(KV)
|
|
|
30
|
6
6.3
10
10.5
11
|
±5%
or
±2×2.5%
|
0.4
|
Dyn11
Yyn0
Yzn11
|
80
|
0.3
|
630/600
|
4
|
330
|
800*500*850
|
35
|
|
|
50
|
100
|
0.24
|
910/870
|
380
|
820*550*850
|
35
|
|
|
63
|
110
|
0.23
|
1090/1040
|
410
|
835*580*850
|
35
|
|
|
80
|
130
|
0.22
|
1310/1250
|
430
|
840*600*880
|
36
|
|
|
100
|
150
|
0.21
|
1580/1500
|
460
|
860*600*890
|
36
|
|
|
125
|
170
|
0.2
|
1890/1800
|
590
|
1020*660*880
|
37
|
|
|
160
|
200
|
0.19
|
2310/2200
|
650
|
1035*660*950
|
38
|
|
|
200
|
240
|
0.18
|
2730/2600
|
710
|
1040*680*980
|
39
|
|
|
250
|
290
|
0.17
|
3200/3050
|
850
|
1140*740*1010
|
40
|
|
|
315
|
340
|
0.16
|
3830/3650
|
970
|
1160*760*1150
|
42
|
|
|
400
|
410
|
0.16
|
4520/4300
|
1130
|
1230*800*1200
|
44
|
|
|
500
|
480
|
0.16
|
5410/5150
|
1335
|
1320*900*1200
|
45
|
|
|
630
|
Dyn11
Yyn0
|
570
|
0.15
|
6200
|
4.5
|
1630
|
1420*920*1230
|
46
|
|
|
800
|
700
|
0.15
|
7500
|
1950
|
1480*1000*1330
|
47
|
|
|
1000
|
830
|
0.14
|
10300
|
2205
|
1600*1100*1280
|
48
|
|
|
1250
|
970
|
0.13
|
12000
|
2565
|
1655*1135*1375
|
49
|
|
|
1600
|
1170
|
0.12
|
14500
|
3100
|
1815*1260*1450
|
49
|
|
|
2000
|
1550
|
0.11
|
18300
|
5
|
3785
|
1920*1305*1510
|
50
|
|
|
2500
|
1830
|
0.1
|
21200
|
4570
|
2120*1430*1575
|
50
|
|
Note:
1, For transformer whose rated capacity is 500 KVA and below, the load loss value above the slash in the table is suitable for Dyn11 or Yzn11 connection groups, and that below the slash for YynO connection groups.
2, Transformers whose HV tapping range is ±2×2.5 may be provided, if need be.
3, Transformers whose LV is 0.69KV may be provided, if need be.
4, Users may choose other loss values as they need.
5, Due to product upgrading and changes to the external dimensions and products in the table, please refer to the external dimensions provided at the time of ordering.
