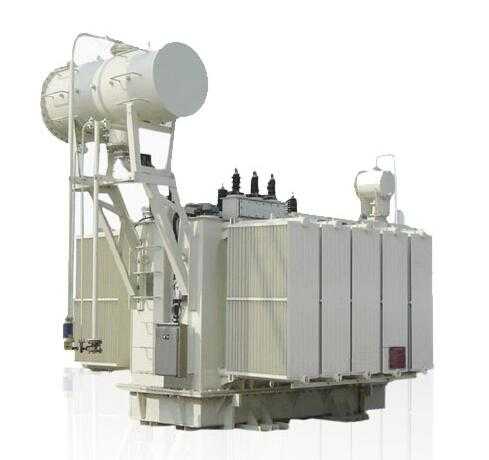

S11 35kv Power-Girds Three-Phase Oil-Immersed Energy Saving Power Transformer
35 kV grade low loss on-load voltage regulating transformer has 10% lower no-load loss and on-load loss than standard GB/T6451-1999 in average.
Trademark: GSE
Specification: 630-31500KVA;
HS Code: 8504901100
Description
- Model NO.: S11
- Phase: Three
- Cooling Method: Oil-immersed Type Transformer
- Certification: ISO9001-2000, UL, ISO9001, CCC
- Frequency Characteristics: Power Frequency
- Brand: Gse
- Color: Gray, Green or Customized
- Radiator Design: Can Be Customized
- Transport Package: Wooden/Plywood Case
- Origin: China
- Application: Power, Electronic, Instrument, Lighting, Rectifier, Audio
- Core: Core-type Transformer
- Winding Type: Two-winding Transformer
- Usage: Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer
- Shape of Core: Ring
- Material: Oil, CRGO, Copper
- Apply Standard: IEC60076/ANSI/GB
- Trademark: GSE
- Specification: 630-31500KVA;
- HS Code: 8504901100
Voltage grade 35KV/10.5~6.3~3.15KV ;
capacity 630-31500KVA;
35 kV grade low loss on-load voltage regulating transformer has 10% lower no-load loss and on-load loss than standard GB/T6451-1999 in average.
The transformer applies CAD means. It has advanced design, reasonable structure, excellent materials. And all indices conform to international standards.It is within domestic leading level. It can be widely used in industrial and agricultural power grids in urban and rural areas.
It has important significance on energy saving and environmental protection.
Technical Data
|
Model
|
voltage combination KV
|
connection symbol
|
no-load loss KW
|
load loss KW
|
impedance %
|
no-load current %
|
weight Kg
|
outline dimension mm
|
gauge mm
|
|
HV
|
LV
|
body
|
oil
|
total
|
|
S11-1600/35
|
35 ±2*2.5% or ±3*2.5%
|
6.3
|
Y,d11 or D,y11
|
1.85
|
16.67
|
6.5
|
0.8
|
2550
|
1380
|
5550
|
2580*1700*2530
|
820*1070
|
|
S11-2000/35
|
2.3
|
19.24
|
6.5
|
0.78
|
3130
|
1630
|
6350
|
2660*1890*2660
|
820*1070
|
|
S11-2500/35
|
2.72
|
20.65
|
6.5
|
0.75
|
3800
|
1920
|
7950
|
2750*2000*2800
|
820*1070
|
|
S11-3150/35
|
3.35
|
25.2
|
7
|
0.75
|
4360
|
2200
|
9300
|
2880*2050*2950
|
1070*1070
|
|
S11-4000/35
|
4
|
29.5
|
7
|
0.75
|
5190
|
2380
|
10900
|
3000*2260*3000
|
1070*1070
|
|
S11-5000/35
|
6.6
|
4.8
|
32.8
|
7
|
0.7
|
6290
|
2650
|
12300
|
3120*2300*3150
|
1070*1070
|
|
S11-6300/35
|
10
|
5.7
|
35.9
|
7.5
|
0.6
|
7200
|
3150
|
14200
|
3180*2330*3200
|
1070*1070
|
|
S11-8000/35
|
10.5
|
YN,d11 or D,yn11
|
7.8
|
43.2
|
7.5
|
0.55
|
8950
|
3730
|
16900
|
3320*2850*3400
|
1505*1505
|
|
S11-10000/35
|
8.65
|
48.3
|
7.5
|
0.55
|
11000
|
4120
|
20200
|
3530*2980*3450
|
1505*1505
|
|
S11-12500/35
|
10.7
|
55.5
|
8
|
0.45
|
12850
|
4300
|
22500
|
3730*3060*3500
|
1505*1505
|
|
S11-16000/35
|
13.2
|
67.3
|
8
|
0.45
|
16300
|
5200
|
29300
|
4000*3320*3700
|
1505*1505
|
|
S11-20000/35
|
15.3
|
77.9
|
8
|
0.4
|
19500
|
6020
|
35800
|
4100*3400*3830
|
1505*1505
|
|
S11-25000/35
|
17
|
94.3
|
8
|
0.36
|
21800
|
6820
|
39300
|
4250*3530*4050
|
1505*1505
|
|
S11-31500/35
|
22.22
|
119.3
|
8
|
0.32
|
25350
|
9200
|
44950
|
4400*3600*4300
|
1800*1505
|
