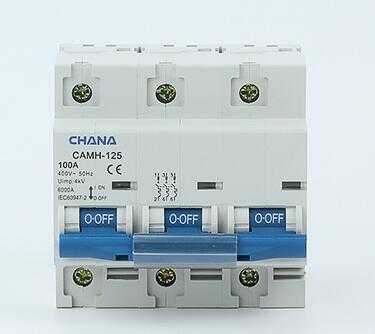

Standard

IEC60898-1

Electrical Feature

Rated current In

A

1,2,3,4,6,10,16,20,25,32,40,50,63

Poles

P

1,1+N,2,3,3+N,4

Rated voltage Ue

V

240/415

Insulation voltage Ui

V

500

Rated frequency

Hz

50/60

Rated breaking capacity

A

6000/10000

Energy limiting class

3

Rated impulse withstand voltage(1.2/50) Uimp

V

4000

Dielectric test voltage at ind. Freq. For 1 min

V

2000

Pollution degree

2

Thermo-magnetic release characteristic

B,C,D

Mechanical Feature

Electrical life

8000

Mechanical life

20000

Contact position indicator

Yes

Protection degree

IP20

Reference temperature for setting of thermal element

º C

30

Ambient temperature (with daily average≤ 35º C)

º C

-5...+40

Storage temperation

º C

-25...+70

Installation

Terminal connection type

Cable/U-type busbar/Pin-type busbar

Terminal size top/bottom for cable

25mm2 18-3AWG

Terminal size top/bottom for busbar

25mm2 18-3AWG

Tightening torque

2.0 N*m 22 In-Ibs

Mounting

On DIN rail EN 60715 (35mm) by means of fast clip device

Connection

From top and bottom

Conbination with Accessory

Combination with accessories

Auxiliary contact, Shunt release, Under voltage release, Alarm contact
