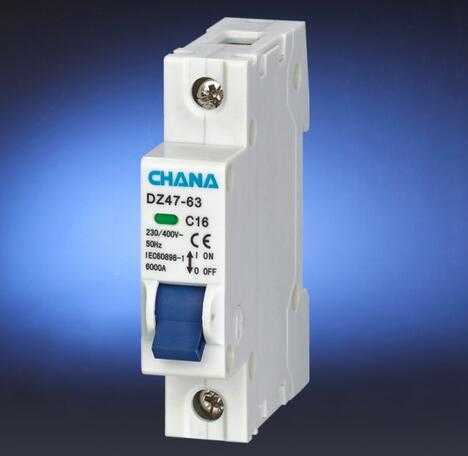

Dz47-63 Ce CB Semko Certificated C45 MCB Mini Circuit Breaker

Rated current In :1,2,3,4,6,10,16,20,25,32,40,50,63A; Poles:1P, 1P+N, 2P, 3P, 3P+N,4P; Rated voltage Ue:240/415V.

Description

Model NO.: DZ47-63
Operation: Manual Type
Arc-extinguishing Medium: Air
Structure: MCB
Type: Circuit Breaker
Certification: ISO9001-2000, CE, CB, CCC, Eac,RoHS,Semko
Handle Color: Blue or Customized
Contacts: Silver
Transport Package: 180PCS/1 Pole
Origin: Yueqing, Zhejiang

Breaking Capacity: Low Voltage Circuit Breakers
Speed: Normal Type Circuit Breaker
Installation: DIN Rail
Poles Number: 1p,1p+N,2p,3p,3p+N.4p
Function: Overcurrent Protection
Material: PA
Coil: Cooper
Trademark: CHANA or OEM
Specification: EAC, SEMKO, CE, CB, ROHS
HS Code: 853620000

Electrical Features
Rated current In :1,2,3,4,6,10,16,20,25,32,40,50,63A
Poles:1P, 1P+N, 2P, 3P, 3P+N,4P
Rated voltage Ue:240/415V
Insulation voltage Ui :500V
Rated frequency:50/60Hz
Rated breaking capacity :4500A(3000A,4000A,6000A can customized)
Energy limiting class:3
Rated impulse withstand voltage(1.2/50) Uimp:4000V
Dielectric test voltage at ind. Freq. for 1 min:2kV
Pollution degree:2
Thermo-magnetic release characteristic: B,C,D

Mechanical Features
Electrical life:8,000
Mechanical life:20,000
Contact position indicator: Yes
Protection degree:IP20
Reference temperature for setting of thermal element:30ºC
Ambient temperature (with daily average≤35ºC): -5ºC...+40ºC
Storage temperation: -25ºC...+70ºC

Installation
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 25mm2 18-3AWG
Terminal size top/bottom for busbar: 25mm2 18-3AWG
Tightening torque 2.0 N*m 22 In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom

Combination with accessories
Auxiliary contact: Yes
Shunt release: Yes
Under voltage release: Yes
Alarm contact: Yes
