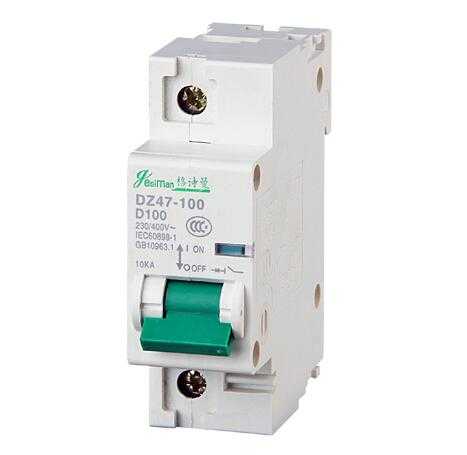

DZ47-100-[NC-100H] Mini Circuit Breaker
Standard: IEC60898

Construction and Feature
 Protection against both overload and short circuit
 High short-circuit capacity
 Easy mounting onto 35mm DIN rail
Technical Data

Pole No.:  1P,2P,3P,4P,1P+N,3P+N
Rated voltage: AC 230/400V
Rated current (A): 32, 40, 50, 63,80,100A
Tripping curve: B  C  D
Rated short-circuit capacity (Icn):  6kA
Rated frequency: 50/60Hz
Energy limiting class: 3
Rated impulse withstand voltage: 6.2kV
Electro-mechanical endurance: 4000
onnection terminal: Pillar terminal with clamp
Connection capacity: Rigid conductor up to 25mm2
Fastening torque: 2.0Nm
Installation:
On symmetrical DIN rail 35mm
Panel mounting
Terminal Connection Height: 21mm
Accessories
F2 Auxiliary contact
S2 Shunt tripper
U2+O2 over-voltage & under-voltage tripper

1.The catalogue conveys the latest product information for detailed reference by purchasing/designing staff dedicated to electrical industrycommercial and household installation.
2.Other than separate stipulation, the normal operation conditions of our products (excluding components) are referred as below:

...Altitude above sea level less than 2000m;
...Ambient temperature -5~+40, average temperature not exceeding +35 within 24 hours;
...Relative Humidity not exceeding 50% at maximum temperature +40 higher relative humidity allowed at lower temperature. For          example, relative humidity 90% allowed at +20;
...Pollution class: II (means generally only non-electricity conducting pollution is considered, and also considers temporary electricity    conducting pollution occasionally caused by condensed dew);
...Perpendicular installation with allowed tolerance  5.

3.Terminal electric devices shall be mounted on Din rail of TH35-7.5D type.
