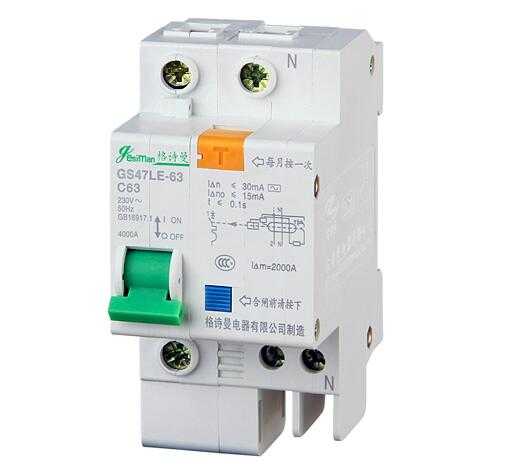

Dz47le-63 Series Low Voltage fixed Miniature Circuit Breaker 1p

Miniature circuit breaker is applicable to the circuit of AC50Hz/60Hz, rated voltage 230V in single pole, 400V in double, three, four poles, rated current up to 63A.

Product Details Company Profile

Description

Model NO.: 1P DZ47LE-63
Operation: Electric Type
Arc-extinguishing Medium: Vacuum
Structure: MCB
Type: Circuit Breaker
Certification: CE
Transport Package: Normal Package
HS Code: 85362000

Breaking Capacity: Low Voltage Circuit Breakers
Speed: Normal Type Circuit Breaker
Installation: Fixed
Poles Number: 1,2,3,4,1p+N,3p+N
Function: Circuit-Breaker Failure Protection
Trademark: GSM
Origin: Wenzhou

Application:
Miniature circuit breaker is applicable to the circuit of AC50Hz/60Hz, rated voltage 230V in single pole, 400V in double, three, four poles, rated current up to 63A.
Miniature circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short circuit.
Features:
1. Neoteric in structure, light in weight, reliable and excellent in performance.
2. High breaking capacity, can trip quickly
3. High fire-resistant and shockproof plastics of its case and items
4. Meet the international IEC60898 standard

Type	DZ47LE-63
Description	Miniature circuit breaker
Rated voltage	AC220/240; AC380/400
Rated current	6, 10, 16, 20, 25, 32, 40, 50, 63
Pole	1P+N, 2P, 3P, 3P+N, 4P
Ambient temperature	greater than minus 5 centigrade, less than 40 centigrade
Mounting class	IIIIIclass
Mounting environment	elevation: less than or equal to 2000m, no humid and corrosive gas
Type of instantaneous release	B(3-5In)
	C(5-10In)
	D(10-20In)
Overload protection	distribution, motor distribution protection
Rated circuit breaking capacity	4kA
Mounting manner	used for track of 35mm of IEC standard
Standard	GB16917.1
