Dg and Sg Series A GRADE Three Phase Electric Dry Type Transformer

1.Input voltage:rated voltage ±10%; 2.Output voltage:rated voltage +3%(no load); 3.Efficiency:≥95%; 4.Waveform distortion:no additional waveform distortion.

Product Details Company Profile

Description

Model NO.: SG
Phase: Three
Cooling Method: Dry-type Transformer
Trademark: HONLE
Origin: China

Application: Power, Electronic
Core: Core-type Transformer
Winding Type: Separated Winding Transformer
Specification: A GRADE
HS Code: 8504401990

Working condition
1.Ambient temperature:-15-+40Dgree
2.Altitude:<1000m
3.Relative humidity:<90%
4.Environnment exists with out gas,steam,chemical deposition,dust or dirt that will affect transformer's insulation seriously,also explosive or corrosive medium is not allowed.
5.If any special working conditions that are not in line with the above stipulations,user shall negotiate with us,

Main technical characters
1.Input voltage:rated voltage ±10%
2.Output voltage:rated voltage +3%(no load)
3.Efficiency:≥95%
4.Waveform distortion:no additional waveform distortion

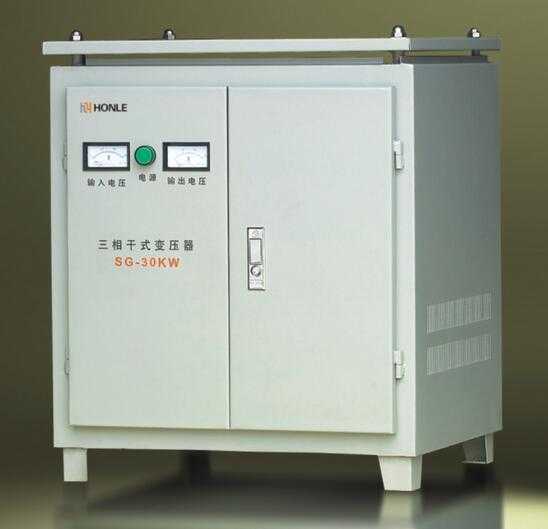

Dry Type Transformer
