Advantages:
                     1.Our Company Has Great Reputation In The Market.
                           2.Good Quality Guaranteed With Reasonable Price.
                           3.OEM, ODM Are Welcomed.
                           4.Goods Will Be Delivered On Time.
                           5.Factory Selling Directly

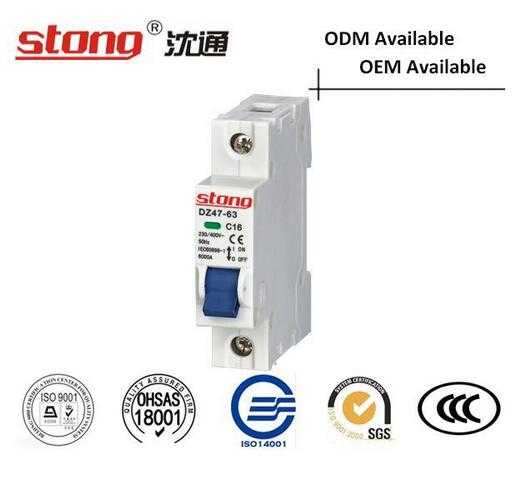

Electrical Features
Rated current In: 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A
Poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P
Rated voltage Ue: 240/415V
Insulation voltage Ui: 500V
Rated frequency: 50/60Hz
Rated breaking capacity: 4500A/3000A
Energy limiting class: 3
Rated impulse withstand voltage(1.2/50) Uimp: 4000V
Dielectric test voltage at ind. Freq. For 1 min: 2kV
Pollution degree: 2
Thermo-magnetic release characteristic: B, C, D
Mechanical Features
Electrical life: 4, 000
Mechanical life: 10, 000
Protection degree: IP20
Reference temperature for setting of thermal element: 30º C
Reference temperature for setting of thermal element: 30º C
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C

Installation
Terminal connection type: Cable/Pin-type busbar
Terminal size top/bottom for cable: 25mm2
Terminal size top/bottom for busbar: 25mm2
Tightening torque 2.0 N*m
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom
Combination with accessories
Auxiliary contact: Yes
Shunt release: Yes
Under voltage release: Yes
Alarm contact: Yes
