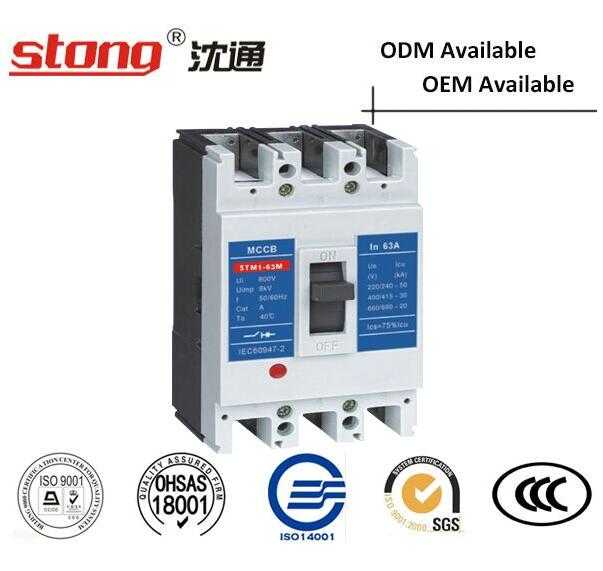

Stm1-63A Series MCCB High-Speed Moulded Case Circuit Breaker

STM1 series moulded case circuit breaker ( named as MCCB in the following) is a new type breaker which is applied with rated insulating voltage 800V (500V for STM1-63), rated working voltage 400V/415V and used for infrequent exchange and startup in AC (60)Hz condition.

Product Details Company Profile

Description

Model NO.: STM1-63
Operation: Electric Type
Arc-extinguishing Medium: Air
Structure: MCCB
Type: Circuit Breaker
Certification: ISO9001-2000, CE, CB, CCC
Transport Package: in Wooden Case
Origin: Yueqing City

Breaking Capacity: Low Voltage Circuit Breakers
Speed: High-Speed Circuit Breaker
Installation: Fixed
Poles Number: 4
Function: Overcurrent Protection
Trademark: Shentong
Specification: MCCB
HS Code: 8536200000

Advantages:
1.Our Company Has Great Reputation In The Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM, ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly

Model (3P; 4P)
STM1-63L, STM1-63M : 10, 12, 16, 20, 25, 32, 40, 50, 63A
STM1-100L, STM1-100M: 16, 20, 25, 32, 40, 50, 63, 80, 100A
STM1-225L, STM1-225M: 125, 160, 180, 200, 225A
APPLICATION
STM1 series moulded case circuit breaker ( named as MCCB in the following) is a new type breaker which is applied with rated insulating voltage 800V (500V for STM1-63), rated working voltage 400V/415V and used for infrequent exchange and startup in AC (60)Hz condition. The MCCB is of protecting function in overloading, short-circuit, and under voltage situation to protect circuit system and power device from damage.

The MCCB can be devided into L; M; H types according to their rated limit short-circuit breaking capacity.

The MCCB is advantageous for its compact body, high breaking capacity ( some even on flying arc), short arc-casting and superior aseismatic function.

The MCCB has function of insulation.
