- Packaging Details:Pallet with plywood box
- Delivery Time:7days
Features at Glance:

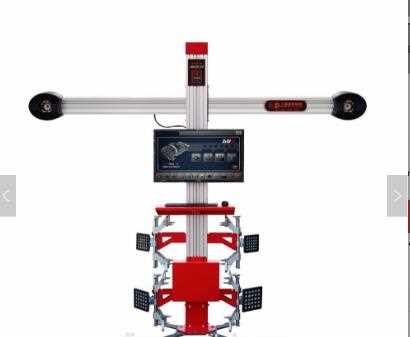

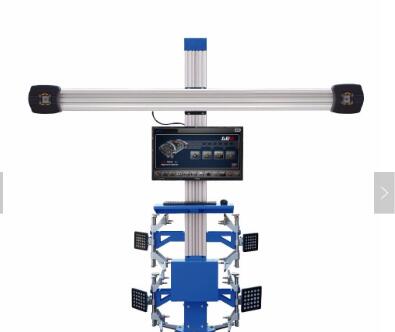

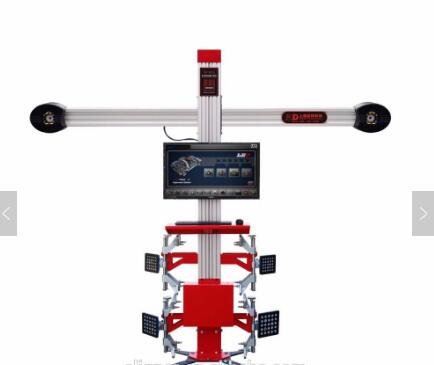

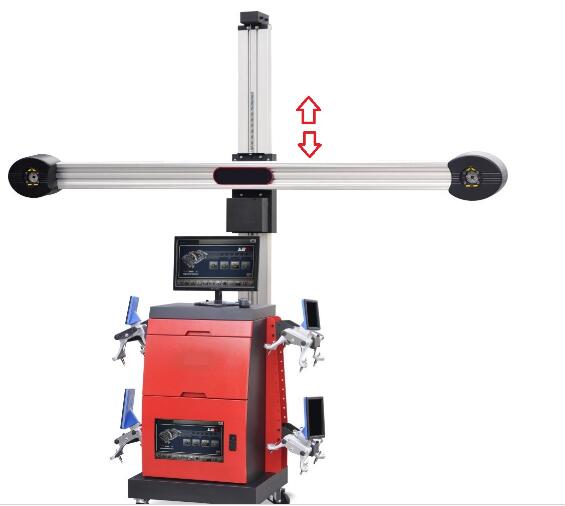

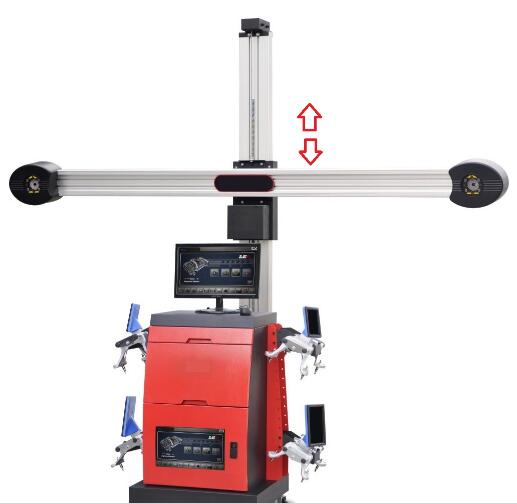

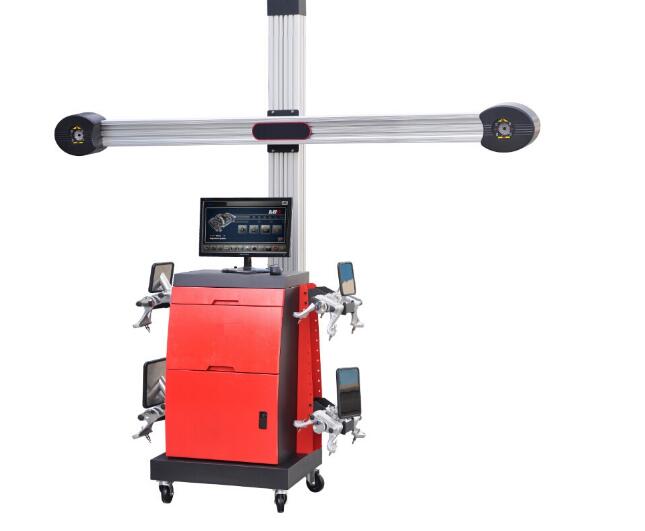

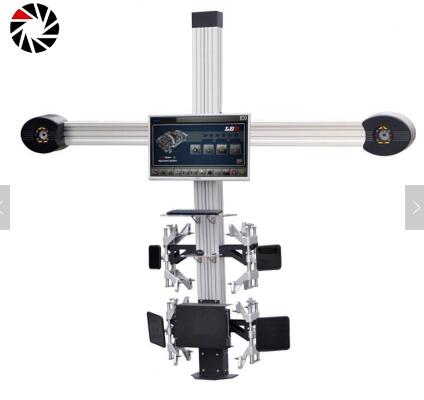

* Combined with four shielded targets, double HD camera 3D system provides the most economic and accurate four-wheel alignment.
* Cameras constantly take pictures from the four target plates and do precise calculation, the measurement data immediately shown.
* Camera calibration has been done in the factory.
* The camera is fixed on the beam and no need to adjust.
* The target does not have electronic devices, wire and battery, no need to calibrate.
* Special Configuration:
Temperature Compensation ,Fast measuring and No crash,Accurate,Easy operation , Audio prompt, Multilingual.
Standard Parameters Measurement
Product Specifications:
Power supply: 110V~220V AC,50/60Hz
Toe: +20°~-20° (±1′).
Camber: +10°~-10° (±2′).
Caster: +20°~-20° (±3′).
KPI: +20°~-20° (±3′).
Set back: +5°~-5° (±2′).
Thrust angle: +5°~-5° (±2′).
The equipments Requirement:
Power: 500 W,110V~220V AC,50/60Hz
Beam with 2HD cameras
Computer: Brand PC,
Software requirement:Win 7,32-bit operating system
Internal Memory Capacity:1G
Dongle:1PC
Printer: HP brand
Target: 4 small targets
Clamp: 12"-22",24" optional

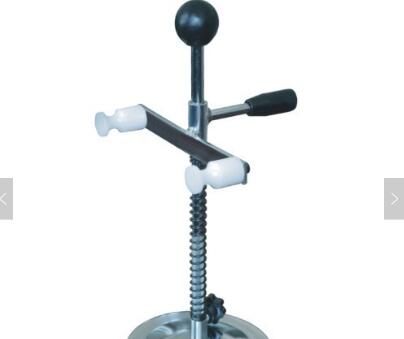

Brake Fixer
Lock for Steering wheel
Turntables: 2PCS
2PCS Wedge Block
Luxury cabinet 1PC
Update: online freely
Warranty :one year (Camera and HUB board: 3 years),
