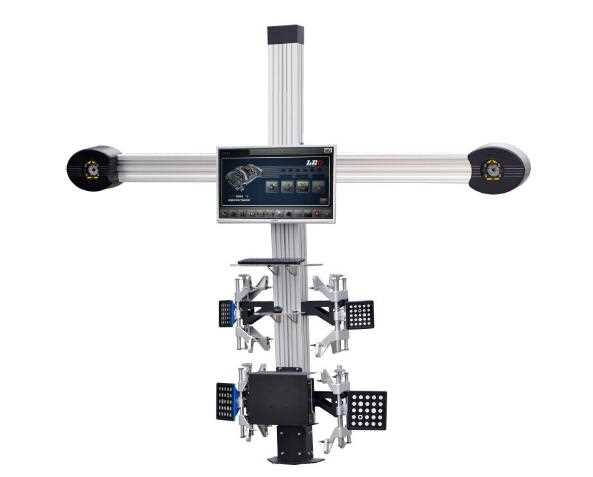

excellent stability high-definition wheel aligner

1.Combined with four mini target plates, double HD camera 3D system provides the most economic and accurate four wheel alignment; 2.Cameras constantly take pictures from target plates and do precise calculation, the measurement data immediately shown.
Product Details Company Profile

Description

Power:500W
Max. Rim Diameter:3.5m
Max. Rim Width:510mm
Power Supply:110~220V
Balancing Speed:No Limited
Max. Wheel Weight:No Limited
Place of Origin:Jiangsu, China (Mainland)
Brand Name:LEO
Model Number:101D
Warranty:1 Years
Camber:+10~-10(±1')
Caster:+20~-20 (±3')
KPI:+20~-20 (±3')
Toe:+20~-20 (±1')
Set back:+5~-5 (±2')
MAX Steering angle:+60~-60 (±0.1')
Thrust angle:+5~-5 (±2')
Service:OEM
Certification:CE
Feature:3D dynamic simulation, Real-time Measuring
Packaging & Delivery
Packaging Details:Pallet with Plywooden box & Carton
Delivery Time:Shipped in 7 days after payment

With Intellectual Property Right on software, CE certification,Patents,HD Camera, USB Interface, FPGA Technology, Temperature Compensation, Intuitive , 3D dynamic simulation, Real-time Measuring, Less demand to lift level,very good stability and accuracy more than 5 megapixel camera.

* Combined with four mini target plates, double HD camera 3D system provides the most economic and accurate four wheel alignment .

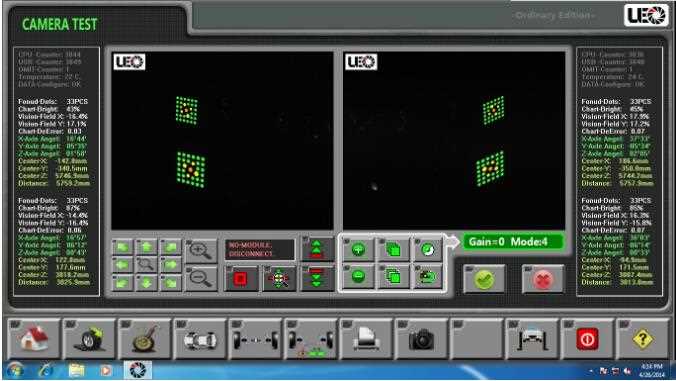

* Cameras constantly take pictures from target plates and do precise calculation, the measurement data immediately shown.

* Camera calibration has been done in the factory.

* The camera is fixed on the beam and no need to adjust.

* The target does not have electronic devices, wire and battery, no need to calibrate

* Special Configuration:

Temperature Compensation ,Fast measuring, No crash,Accurate,Easy operation and Maintenance, Audio prompt, Multilingual. All-in-one (without cabinet)

Aluminium Turntable

Standard Parameters Measurement

Chassis Parameters Measuremment

Visual Vehicle coming in

Remote technical service provided

excellent stability high-definition wheel aligner



excellent stability high-definition wheel aligner

excellent stability high-definition wheel aligner
