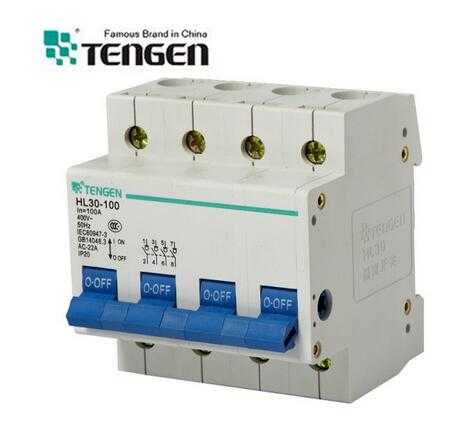

Hl30-100 Series 4 Pole 230 400V AC Isolation Swtich MCB Circuit Breaker

HL30 series connecting isolation swtich is suitable AC 50Hz or 60Hz,rated voltage 400V and below,rate current 100A and below,to be the main switch of the terminal appliance,as well as control the electromotor,small-power appliance and illumination etc.It conforms to the standards GB14048.3 and IEC60947-3.

Product Details Company Profile

Description

Model NO.: HL30-100
Operation: Electric Type
Arc-extinguishing Medium: Air
Structure: MCB
Type: Circuit Breaker
Certification: ISO9001-2000, CE, CB, CCC
Rated Voltage: 230/400V
Rated Current: 100A
Trademark: TENGEN
Origin: Zhejiang China

Breaking Capacity: Low Voltage Circuit Breakers
Speed: Normal Type Circuit Breaker
Installation: Fixed
Poles Number: 3
Function: Conventional Circuit Breaker
Model Number: Hl30-100
Rated Short-Circuit Making Capacity: 1500A
Place of Origin: Zhejiang, China
Specification: CE CCC SGS
HS Code: 863520000

100A 3 pole 230/400V China manufacturer AC isolation swtich MCB
miniature circuit breaker connecting isolation switches isolation switches

APPLICATION
HL30 series connecting isolation swtich is suitable AC 50Hz or 60Hz,rated voltage 400V and below,rate current 100A and below,to be the main switch of the terminal appliance,as well as control the electromotor,small-power appliance and illumination etc.It conforms to the standards GB14048.3 and IEC60947-3.

TECHNICAL DATA

Rated voltage	Rated current	Rated making and breaking capacity	Rated short-circuit making capacity	Rated short circuit fuse capacity
230/400V	32A,63A,80A,100A	3Ie,1.05Ue,COSΦ=0.65	1500A	1200A/Is

Rated voltage:230/400V
Rated current:32A,63A,80A,100A
Rated making and breaking capacity:3Ie,1.05Ue,COSΦ=0.65
Rated short circuit switched capacity:1500A
Rated short circuit fuse capacity:1200A/Is
Poles:1,2,3,4

Installation:
On nomal din rail 35 mm1. HL30-100 ISOLATOR main switch products
2. CE&CB certificates
3. Plenty OEM experiences
4. New isolating item
Function and Feature:
Capable of switch electric circuit with load
Adaptable to padlock device
Capable of quickly releasing stored energy operation
Highlight of high making and breaking capacity
Used as main switch for household and similar installation

Rated Current(In): 20, 32, 63, 80, 100A
Rated Voltage(Un): 230VAC/400VAC
Number of Poles: 1P, 2P, 3P, 4P
Rated frequency: 50/60Hz
Electrical endurance: 10000 cycles
Mechanical endurance: 20000 cycles
Rated impulse withstand voltage(Uimp): 6kv
Type of Terminal: Lug type
Terminal Capacity: Cable up to 35mm2
Torque of screw: 2.5Nm
IP degree: IP 20
Width: 17.6mm/module
Standards: IEC60947-3, EN60947-31. HL ISOLATOR main switch products
2. CE&CB certificates
3. Plenty OEM experiences
4. New isolating item
Function and Feature:
Capable of switch electric circuit with load
Adaptable to padlock device
Capable of quickly releasing stored energy operation
Highlight of high making and breaking capacity
