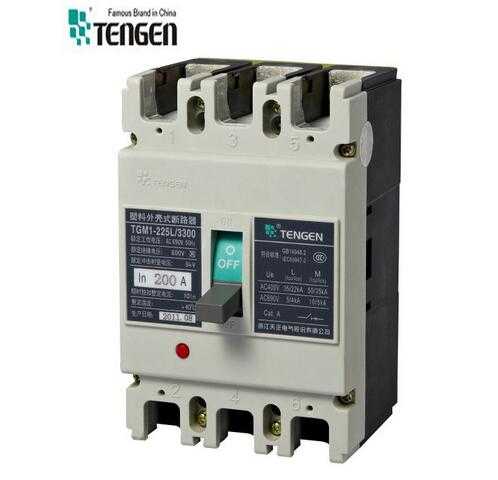

Tgm1-225 Series MCCB Manufacturer 690V 200AMP Moulded Case Circuit Breaker

Equiped with the protection devices for over-current. short circuit and under voltage. The product is capable of preventing damage of circuits and supply units. The product conforms to IEC60947-2 standard.

Product Details Company Profile

Description

Model NO.: TGM1-225
Operation: Manual Type
Arc-extinguishing Medium: Air
Structure: MCCB
Type: Circuit Breaker
Certification: ISO9001-2000, CE
Rated Voltage: 690V
Rated Current: 225A
Temperature: -5-+40
Pollution Grade: 3
Trademark: TENGEN
Origin: Zhejiang Chian

Breaking Capacity: Low Voltage Circuit Breakers
Speed: Normal Type Circuit Breaker
Installation: Fixed
Poles Number: 3
Function: Conventional Circuit Breaker
Brand Name: Tengen
Rated Insulation Voltage: 800V
Frequency: AC 50Hz
Altitude: ≤2000
Place of Origin: Zhejiang, China (Main
Specification: CE CCC
HS Code: 853620000

TGM1 series moulded case circuit breaker is new type product developed and manufactured by adopting international advanced technology. It is supplied with rated insulation voltage 800V and used for circuit of A.C.50Hz,rated operating voltage AC 400V,or below rated operating current up to 800A for infrequent changing over and starting of the motors. Equiped with the protection devices for over-current. short circuit and under voltage. The product is capable of preventing damage of circuits and supply units. The product conforms to IEC60947-2 standard.

Rated insulating voltage : 750v

Rated operating voltage : 690 and below

Ultimate short breaking capacity : 25KA~150KA

Servies short circuit breaking capacity : 25KA~150KA

Type	Rated current (A)	Poles	Rated insulation voltage(V)	Arcing-Over Distance (mm)	Ultimated short Circuit Breaking Capacity(KA)	Service Short Circuit Breaking Capacity(KA)	Operation performance
Type	Rated current (A)	Poles	Rated insulation voltage(V)	Arcing-Over Distance (mm)	Ultimated short Circuit Breaking Capacity(KA)	Service Short Circuit Breaking Capacity(KA)	ON	OFF
TGM1-63L	6,10,16,20,25,32,40, 50,63	3P 4P	660V	480V	0	25	1500	8500
TGM163M	6,10,16,20,25,32,40, 50,63				0	50
TGM1-100C	6,10,16,20,25,32,40, 50,63,80, 100				0	25
TGM1-100L					0( ≤50)	35
TGM1-100M					0( ≤50)	50
TGM1-100H					0( ≤50)	85
TGM1-225C	100,125, 160,180, 200				≤50	25	1000	7000
TGM1-225L					≤50	35
TGM1-225M					≤50	50
TGM1-225H					≤50	85
TGM1-400C	225,250, 315,350, 400				≤50	35	1000	4000
TGM1-400L					≤50	50
TGM1-400M					≤50	65
TGM1-630C	400,500, 630				≤100	35
TGM1-630L					≤100	50
TGM1-630M					≤100	65
TGM1-630H					≤100	100
CM1-800M	630,700,800				≤100	65
CM1-800H	630,700,800				≤100	100
