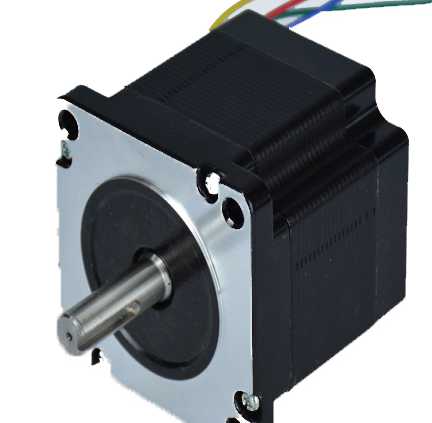

Hybrid Stepper Motor NEMA34

Smooth movement, High accuracy, High speed Applied to the printers, the lighting industry and the intelligent spherical camera etc.

Product Details Company Profile

Description

Two Phase 1.8 degree NEMA 34 Hybrid Stepper Motor / Stepping Motor / Step Motor 86mm x 86mm
Motor feature: Smooth movement, High accuracy, High speed
Applied to the printers, the lighting industry and the intelligent spherical camera etc.
Technical Specification

Model No.	Step Angle	Number of Winding	Leads of motor	Winding Resistance	Winding Inductance	Rated Current	Rated Voltage	Holding Torque	Detent Torque	Max starting rate	Max slewing rate	Rotor Intertia	Weight	body length
	°			Ohm ±10%	mH ±20%	A/phase	DC V	N.m	mN.m	PPS	PPS	g.cm²	Kg	mm
34HD0201	1.8	2	4	1.7	9.7	2	3.4	2.2	170	1000	1600	2900	1.700	65.5
34HD3401	1.8	2	4	1	3.2	3	3	2.1	170	1100	3200	1937	2.100	74.5
34HD1204	1.8	2	4	0.4	3.5	1	0.4	1.9	170	1000	1200	2400	2.200	76.5
34HD5503	1.8	2	4	0.66	2.7	4.5	3	4.3	170	700	2200	3010	3.100	98.5
34HD4207	1.8	2	4	3	0.76	3	2.3	4.5	170	800	900	4500	3.700	119
34HD7401	1.8	2	4	1.6	9	2	3.2	5.4	200
