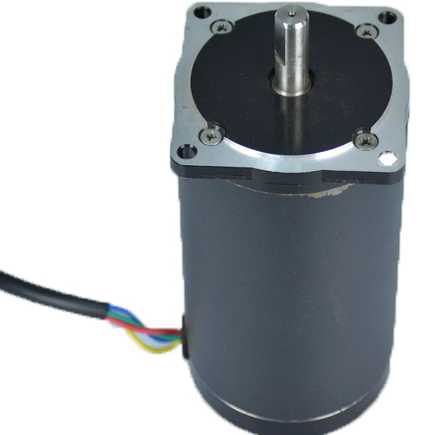

Round NEMA 34 Stepper Motor

1. Answer customer's inquiry within 2 working days. 2. Reply to our customer questions & Concerns within 3 working days. 3. Acknowledge Customer purchase orders within 24 hours. 4. Standard Lead time is within 4 weeks. Respond to special product development within 15 weeks. 5. Flexible delivery methods: By air, sea and express carrier using the customer's forwarder.

Product Details Company Profile

Description

Product Description
Two Phase1.8 degree NEMA 34 Hybrid Stepper Motor / Stepping Motor / Step Motor 86mm x 86mm
Motor feature: Smooth movement, High accuracy, High speed
Applied to the printers, the lighting industry and the intelligent spherical camera etc.

Technical Specification

Model No.	Step Angle	Number of Winding	Leads of motor	Winding Resistance	Winding Inductance	Rated Current	Rated Voltage	Holding Torque	Detent Torque	Max starting rate	Max slewing rate	Rotor Intertia	Weight	body length
	°			Ohm ±10%	mH ±20%	A/phase	DC V	N.m	mN.m	PPS	PPS	g.cm²	Kg	mm
34HA5201	1.8	2	4	3	20	0.9	2.7	3.2	60	1200	2500	2900	3.000	94
34HA7201	1.8	2	4	4.3	32	1	4.3	5.2	60	1000	1800	5214	4.000	126
