Ice cream filling machine straight type

BG-4 Ice Cream Filling Machine is the linear-movement and 4-row one, with standard technology and, which lead the industry and ranks top in China. Sort:Ice Cream Filling Machine Apply:cup/cone ice cream

Product Details Company Profile

Description

Technical parameters

Output:7000~8000 piece/hour Weight/piece:50~250g

Mould:

a.size:640x136x2mm b.product center distance:140mm

c.container dimension:80mm d.plant quantity:87piece

Power:

a.voltage:380v b.frequency:50Hz

c.main drive:3kw d.transmission drive:0.37kw

Chain:

a.chain pitch:70mm b.length:24m

Total Power:4kw

Compressed air:

a.compress:0.6~0.7mpa b.consumed air:2.0m³/min

The Whole Machine:3.5T Dimentions(LxWxH):6020x1310x1950mm

The product is mainly applied for the filling various single-color and double-color ice creams, decoration, chocolate spraying, jam filling, and fruit particles spraying. The product has functions of automatic sorting for cream cones, capping, cap pressing, product pushing out and conveying out. The filling station adopts time-limited filling theory, which can greatly lessen the structure breaking and damages when filling, thus keeping complete shape and good taste. The product can achieve orderly filling and accurate measuring. This equipment adopts advanced electrical element to control such as Siemens TD-200operation screen, American MAC solenoid valve, Wuxi Hengli cylinder and PLC programmable controller.This equipment is beautiful, simple to operate and convenient to clean. It is suitable for large and medium-sized enterprise.

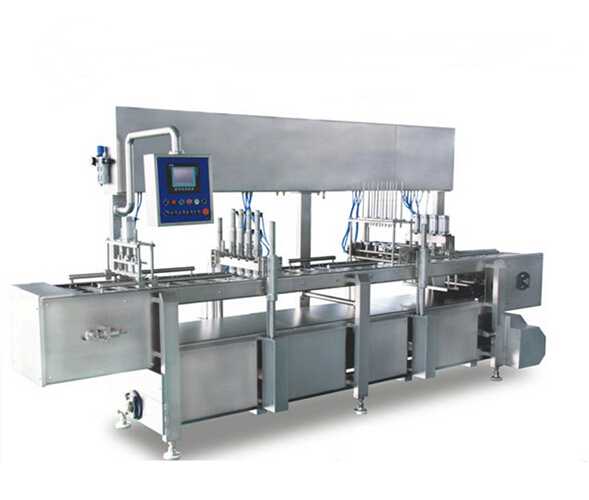

ice cream filling machine straight type
