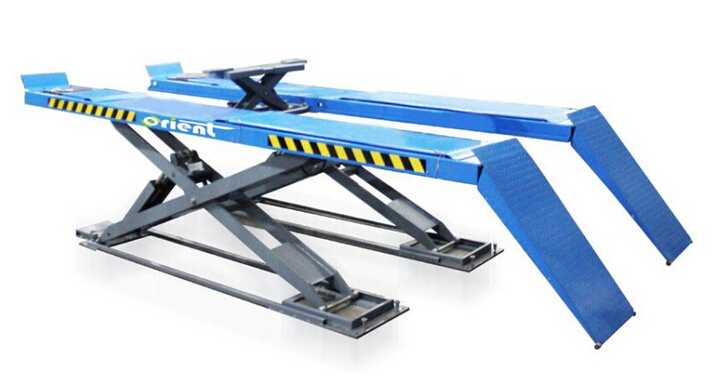

Large Hydraulic Vehicle Lifting Machine

Super loe ptofile design and perfect for sutface mounted;The two-cylinder structure makes the minimum height of 240mm;Idea for wheel alignment,body service and other repair work;Single platform leveling system makes leveling operation easier and ensures the synchronization.

Product Details Company Profile

Description

Model NO.: ORSL1842

Driving Type: Hydraulic

Driving Motor Number of Mechanical Lift: 1

Brand: Orient

Max Lifting Height: 1800mm

Trademark: Orient

Specification: CE & ISO

HS Code: 84254290

Lifting Capacity: 3500kgs

Certification: CE, ISO

Condition: New

Design: Scissor

Min Height: 220mm

Transport Package: Standard Export Packaging

Origin: China

Rating Capacity	4000kg
Runway length	4500mm
Runway Width	635mm
Central Jack Raised Height	450mm
max. Lifting height	1800mm
Min. height	220mm
Lifting time	60s
Ack capacity	2500kg
Central jack raised height	450mm
Motor power	2.2kw
Air supply	6~8Kg/cm2
Power Supply	380V/415V 3phase
Weight	2277kg
Packing Size	4600/4900650700
