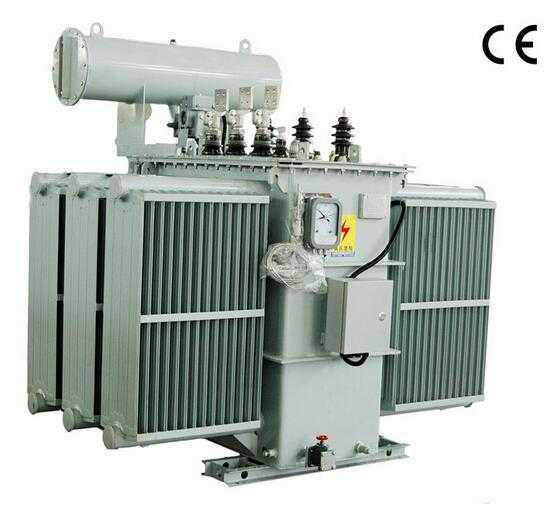

S11-1250/10 Series 10kv S11 Series Oil-immersed Power Transformer

Features: 1.Low loss, low noise; 2.Low impedance; 3.Operation reliability; 4.Pretty outline and compact structure.

Description

Model NO.: S11-1250/10
Phase: Three
Cooling Method: Oil-immersed Type Transformer
Color: Grey
Original: China
Trademark: Boyuan
Origin: Zhangjiagang City

Application: Power, Electronic
Core: Core-type Transformer
Winding Type: Two-winding Transformer
Voltage: 10kv
Voltage Regulation Mode: No Excitation Voltage Regulating
Specification: CE, IEC, GB/T
HS Code: 8504220000

Features:
1.Low loss, low noise
2.Low impedance
3.Operation reliability
4.Pretty outline and compact structure

Technical parameters of 10KV grade S11 series three-phase duplex winding no excitation voltage regulation power transformer

Model NO.	Rated capacity(KVA)	Voltage combination			Connection group symbol	Loss(KW)		No-load current %		Short circuit Impedance %	Weight(kg)		Overall size LWH (mm)	Track gauge(mm)
Model NO.	Rated capacity(KVA)	HV(KV)	HV range%	LV(KV)	Connection group symbol	No-load	Load	No-load current %		Short circuit Impedance %	Oil	Total	Overall size LWH (mm)	Track gauge(mm)
S11-100/10	100	6 6.3 10 10.5 11	(±5%) (±2*2.5%)	0.4	Y yn0 D yn11	0.20	1.50		1.6	4	125	585	11006201125	400*400
S11-125/10	125					0.24	1.80		1.5	4	135	650	11206301150	550*550
S11-160/10	160					0.27	2.20		1.4	4	160	760	11606401195	550*550
S11-200/10	200					0.33	2.60		1.3	4	185	920	12106701235	550*550
S11-250/10	250					0.40	3.05		1.2	4	205	1080	12907201270	550*550
S11-315/10	315					0.48	3.65		1.2	4	240	1250	13107301305	550*550
S11-400/10	400					0.57	4.30		1.1	4	275	1460	13607501355	550*550
S11-500/10	500					0.68	5.10		1.0	4	310	1725	13907601400	660*660
S11-630/10	630					0.81	6.20		0.9	4.5	430	2340	132010601550	820*820
S11-800/10	800					0.98	7.50		0.8	4.5	500	2750	163011201640	820*820
S11-1000/10	1000					1.15	10.30		0.7	4.5	560	3110	195017101925	820*820
S11-1250/10	1250					1.36	12.00		0.6	4.5	700	3630	202018302020	820*820
S11-1600/10	1600					1.64	14.50		0.6	4.5	805	4280	205020502050	820*820
S11-2000/10	2000					2	20.3		0.5	5	880	4770	216019802250	820*820
S11-2500/10	2500					2.45	24.8		0.4	5.5	950	5390	234022202360	820*820
S11-3150/10	3150					3.4	27.5		0.4	6	1620	8030	267020702510	1070*1070
