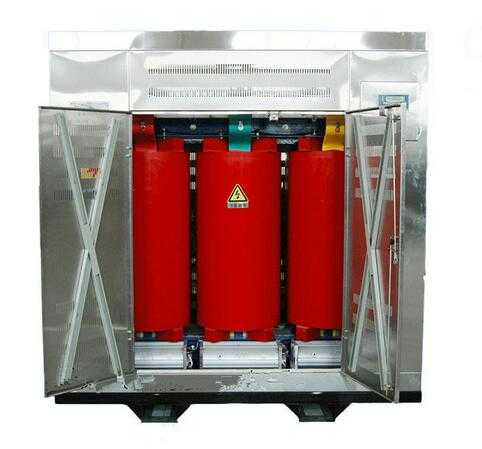

SCB-1250/10 Series H Class Three Phase Dry-Type Transformer

Dry transformer is mainly applied to heating furnace such as glass furnace, electric resistance furnace, vacuum furnace, polycrystalline furnace etc and electroplate, traction rectifier transformer for first grade.

Product Details Company Profile

Description

Model NO.: SCB-1250/10
Phase: Three
Port: Shanghai
Country: China
Specification: IEC, GB/T
HS Code: 8504220000

Application: Power
Core: Core-type Transformer
Insulation Class: H Class
Trademark: Boyuan
Origin: Zhangjiagang, Jiangsu

Use
Dry transformer is mainly applied to heating furnace such as glass furnace, electric resistance furnace, vacuum furnace, polycrystalline furnace etc and electroplate, traction rectifier transformer for first grade.

Model meaning
D-Single phase G-Dry Rated output capacity input side voltage grade
S-three phase
Rated capacity: SG(DG)10kVA-1000kVA
Voltage grade: 0.5KV

Spec. NO.	rated capacity(KVA)	HV (KV)	LV (KV)	no-load loss(W)	load loss(W) 120 celsius degree	load loss(W) 75 celsius degree	short circuit impedance(%)	no-load current(%)	sound pressure range(db)	lp00(without shell)					lP20(lP23)				HV terminal (mm)	LV terminal(mm)
										L(mm)	W(mm)	H(mm)	track gauge(mm)	total(kg)	L(mm)	W(mm)	H(mm)	total(kg)
SCB-1250/10	1250	10	0.4	2385	15640	12760	6	1.1	47	1570	940	1515	820	2790	1900	1350	2000	3100	M10	(d)100×10
