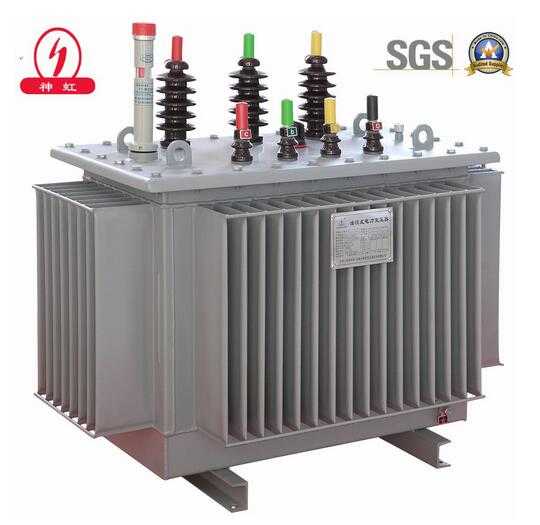

S11-M-30 Multi-winding Core-type Oil Immersed Power Transformer

Low loss of oil immersed transformer series products produced by our company has the international advanced level, obvious energy saving effect, can be widely used in industry and agriculture of urban and rural power grid, its core by new process --step joint, improve the no-load performance, reduce noise.

Product Details Company Profile

Description

Model NO.: S11-M-30~1600/10
Phase: Three
Cooling Method: Oil-immersed Type Transformer
Certification: ISO9001, SGS
Frequency Characteristics: Power Frequency
Brand: Shenhong
Origin: Anhui Province, China

Application: Power, Electronic
Core: Core-type Transformer
Winding Type: Multi-winding Transformer
Usage: Power Transformer
Shape of Core: EI
Trademark: ShenHong
HS Code: 8504340000

Low loss of oil immersed transformer series products produced by our company has the international advanced level, obvious energy saving effect, can be widely used in industry and agriculture of urban and rural power grid, its core by new process --step joint, improve the no-load performance, reduce noise.The iron core is made of high quality cold-rolled silicon steel sheet, the whole seam is oblique, and does not punch.High purity oxygen free copper is used to reduce the copper consumption.

Parameter(S11-30~1600/10 Oil-immersed transformer)
Rating (kVA)	HV (kV)	LV (kV)	Connection symbol	No-load Current(%)	No-load Losses(W)	On-load Losses(120ºC)	short-circuit impedance(%)	Track Distance	Body weight (kg)	Oil (kg)
Rating (kVA)	HV (kV)	LV (kV)	Connection symbol	No-load Current(%)	No-load Losses(W)	On-load Losses(120ºC)	short-circuit impedance(%)	Track Distance	Body weight (kg)	Oil (kg)
30	6 6.3 10 10.5 11 ±5% or ±2×2.5%	0.4	Dyn11 Yyn0 Yzn11	2.0	100	630/600	4	400.0	130	55
50				1.9	130	910/870			200	75
63				1.8	150	1090/1040			250	75
80				1.6	180	1310/1250			280	80
100				1.5	200	1580/1500			320	90
125				1.4	240	1890/1800			340	95
160				1.3	280	2310/2200		550.0	440	110
200				1.2	340	2730/2600			520	130
250				1.1	400	3200/3050			610	150
315				1.0	480	3830/3650			670	160
400				1.0	570	4520/4300			840	190
500				0.9	680	5410/5150			990	210
630			Dyn11 Yyn0	0.8	810	6200	4.5	660	1140	280
800				0.7	980	7500		660	1430	320
1000				0.6	1150	10300		820	1470	360
1250				0.5	1360	12000			1770	400
1600				0.5	1640	14500			2210	440
