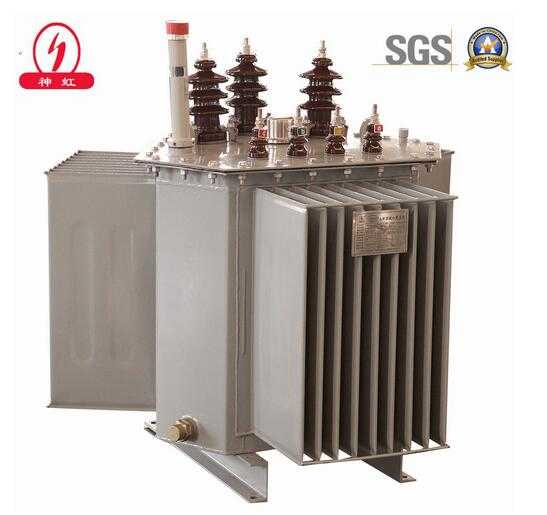

S11-M Triangular Winding Iron Core distribution Transformer

Breaking the normal structure of traditional products, the three column is an equilateral triangle three-dimensional arrangement, the shortest path length and the same phase, the product has a great competitive advantage.

Product Details Company Profile

Description

Model NO.: S11-M. RL-30~1600/10
Phase: Three
Cooling Method: Oil-immersed Type Transformer
Certification: ISO9001-2000, ISO9001, SGS
Frequency Characteristics: Low Frequency
Brand: Shenhong
Transport Package: by Sea

Application: Power, Electronic
Core: Core-type Transformer
Winding Type: Two-winding Transformer
Usage: Power Transformer, Distribution Transformer
Shape of Core: Roll-Core
Trademark: ShenHong
Origin: Anhui Province, China

Breaking the normal structure of traditional products, the three column is an equilateral triangle three-dimensional arrangement, the shortest path length and the same phase, the product has a great competitive advantage.

The direction of the magnetic flux is exactly the same as the crystal orientation of the silicon steel sheet, which greatly reduces the no-load loss and no-load current, and the running noise is less than 45 dB.

Solid triangular frame structure with high strength, which was uniform, strong anti short circuit ability.

Parameter(S11-M.RL-30~1600/10 Triangular winding iron core transformer)
Rating (kVA)	HV (kV)	LV (kV)	Connection symbol	No-load Current(%)	No-load Losses(W)	On-load Losses(120ºC)	short-circuit impedance(%)	Track Distance	Body weight (kg)	Oil (kg)
Rating (kVA)	HV (kV)	LV (kV)	Connection symbol	No-load Current(%)	No-load Losses(W)	On-load Losses(120ºC)	short-circuit impedance(%)	Track Distance	Body weight (kg)	Oil (kg)
30	6 6.3 10 10.5 11 ±5% or ±2×2.5%	0.4	Dyn11 Yyn0 Yzn11	0.33	100	630/600	4	380*550	158	61
50				0.30	130	910/870			208	74
63				0.29	150	1090/1040			222	79
80				0.27	180	1310/1250			259	85
100				0.26	200	1580/1500			282	98
125				0.25	240	1890/1800			332	111
160				0.24	280	2310/2200		400*660	389	134
200				0.23	340	2730/2600			458	156
250				0.22	400	3200/3050			540	180
315				0.21	480	3830/3650		550*820	617	204
400				0.21	570	4520/4300			709	223
500				0.20	680	5410/5150			857	273
630			Dyn11 Yyn0	0.20	810	6200	4.5		1069	343
800				0.19	980	7500			1291	382
1000				0.18	1150	10300		550*1070	1444	501
1250				0.17	1360	12000			1751	654
1600				0.16	1640	14500			2154
