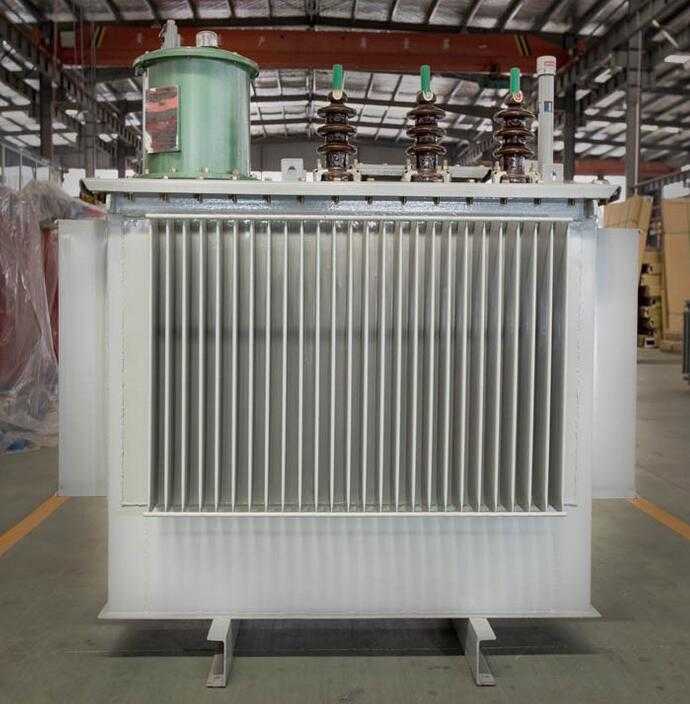

S13-M 315KVA 10KV Three Phase Oil Immersed Power transformer

The products is currently the highest value transformer on market. According to the core structure,S13 type transformer can be divided into laminated core transformer and wound core transformer. Model Number: S13 - M Usage: Power Phase: Three

Product Details Company Profile

Description

Place of Origin: Henan, China (Mainland), China
Brand Name: T-Young
Model Number: S13 - M
Usage: Power
Phase: Three
Coil Structure: Toroidal
Coil Number: Autotransformer
Ptoduct name: S13 - M 315KVA 10KV Oil Immersed Power transformer
Certification: SGS
Rated capacity: 315KVA
Frequency: 50 to 60Hz
Coil: Pure Copper Wire Winding
Standard: GB1094-1996
Iron Core: Silicon Sheet
Color: Gey or green
Weight: 1170Kg

The products is currently the highest value transformer on market. According to the core structure,S13 type transformer can be divided into laminated core transformer and wound core transformer.

Low loss: compared with S11 series transformer, S13 series transformer applied better silicon steel sheet material , not only the no-load loss and no-load current are greatly reduced, the noise is decreased obviously, the performance is superior. laminated core transformer have larger capacity and more convenient in maintenance.Wound core transformer is a closed core framework by mechanically winding method and then annealing .coils shall be specially wound by the use of special winder.it has lower loss and better performance .

Main Features

Toroidal-Core Distribute triangular, Three-phase magnetic circuit equal each other,

excellent Energy-saving performance.
Insulation distribute evenly, larger insulate area, stable structure.
Good short-circuit ability.
Low power loss, Quiet, Winding Coil stick to the Core,good anti-theft performance
