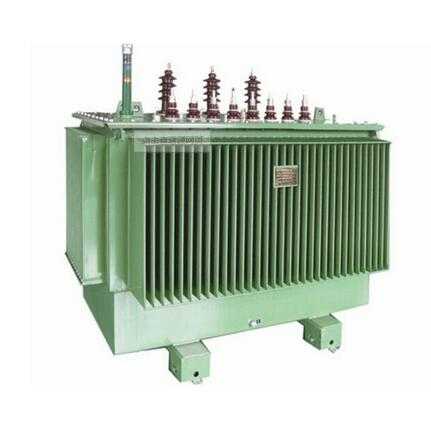

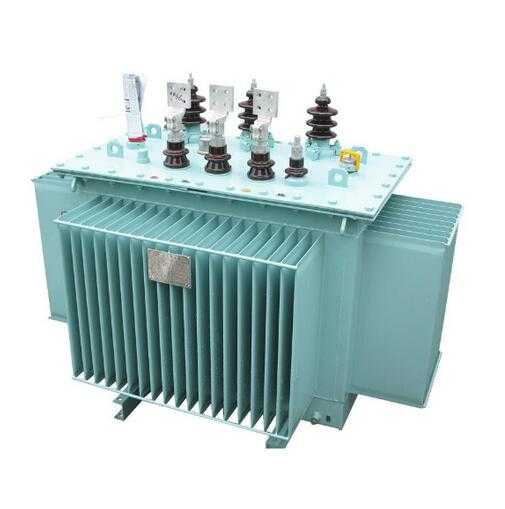

T-Young 35KV three phase Oil Immersed Power Transformer

T-Young produced the Amorphous alloy transformer with new magnetic material , the core part are made by amorphous alloy. Usage: Current, Power Phase: Three, Three Coil Structure: Toroidal, Toroidal

Product Details Company Profile

Description

Place of Origin: Henan, China (Mainland)
Brand Name: T-Young, T-Young
Model Number: SCB H15, SC(B)H15
Usage: Current, Power
Phase: Three, Three
Coil Structure: Toroidal, Toroidal
Coil Number: Autotransformer, 3
Product name: Amorphous Alloy Oil Immersed Power Transformer
Standard: IEC 60076 GB1094.1
Voltage Class: 35KV
Capcity: 30KVA to 2000KVA

T-Young produced the Amorphous alloy transformer with new magnetic material , the core part are made by amorphous alloy. The no-load losses dropped about 75% ,and no-load current declined about 80% compared with the traditional silicon steel core transformer. With such processing, the running cost of the transformer improved greatly. It’s the ideal distribution transformer and particularly suitable for low load rate areas such as countries, developing areas and having a great real meaning in building saving recourse society.Our company develop SC(B)H15 series dry type amorphous alloy transformer and S(B)H15 series oil-immersed amorphous alloy transformer in time. We catch the center problem that is declining product’s no-load-loss in designing, and considering suitable amorphous alloy’s parameters besides amorphous alloy core should be out of force. Great products are produced to suitable for different kinds of users and got high praise.

Amorphous Alloy Transformer
1,Amorphous Alloy Core.
2,Oil-immersed type.
3,Low losses and low noise.
4,Easy installation.

Main parameters:

Capacity: 30kVA~2500 kVA

Voltage class: 35 kV

Tap range: ±2×2.5%,±5%

Frequency: 50Hz 60Hz

Number of phase: Three phase

Insulation grade: A grade, F grade or H grade

T-Young 35KV three phase Oil Immersed Power Transformer
