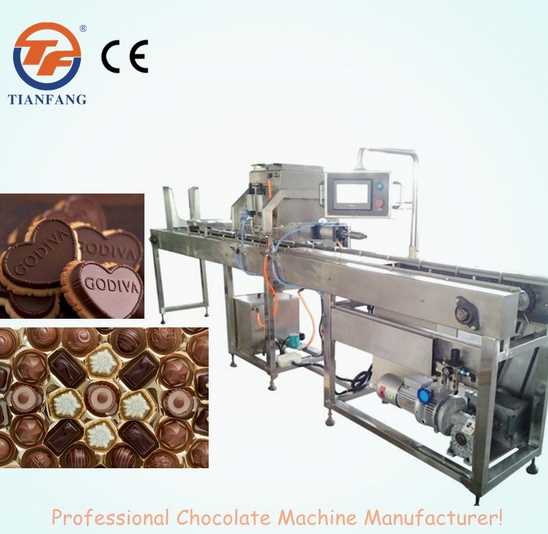

Semi-Automatic Chocolate Depositing Machine with CE Certificate

Semi-automatic Chocolate Moulding Machine is the machine for chocolate forming with the functions of mould heating, mould depositing, mould vibrating, conveying.

Product Details Company Profile

Description

Use:
Semi-automatic Chocolate Moulding Machine is the machine for chocolate forming with the functions of mould heating, mould depositing, mould vibrating, conveying. It not only can produce pure solid chocolate, but also center filling chocolate, two color chocolate, nuts mixed chocolate and so on.

The machine doesn't include cooling tunnel.You can:
Option 1-->Choose our TLSD400 cooling tunnel
OR
Option 2-->Use your own cooling unit

Model

		TQJJ175-1	TQJJ175-2	TQJJ175-3	TQJJ150
Numbers of Depositors		One	Two	Three	One
Capacity (kg/shift)		800-2500			1500
Temperature of Cooling Tunnel		5-10			No Cooling
Cooling Time (minutes)		18-30			No Cooling
Power(kw)		17.4	23	31.5	7.47
Size of Mould (mm)		280×200×30	280×200×30	280×200×30	280×200×30
Quantity of Moulds (pieces)		280	340	410	200
Net Weight (kg)		3500	4300	5200	500
Dimension (mm)		16000×1000×1800	16000×1000×2300	19000×1000×2350	4300×520×1500
Type of Chocolate	PureChocolate	√	√	√	√
	Center Filling Chocolate	√	√	√	√
	One Color Chocolate	√	√	√	√
	Two Color Chocolate (left &right)	√	√	√	√
	Two Color Chocolate (up &down)		√	√
	Three Color Chocolate			√
	Nuts Mixing Chocolate	√	√	√	√
	Wafer Chocolate	√	√	√	√
