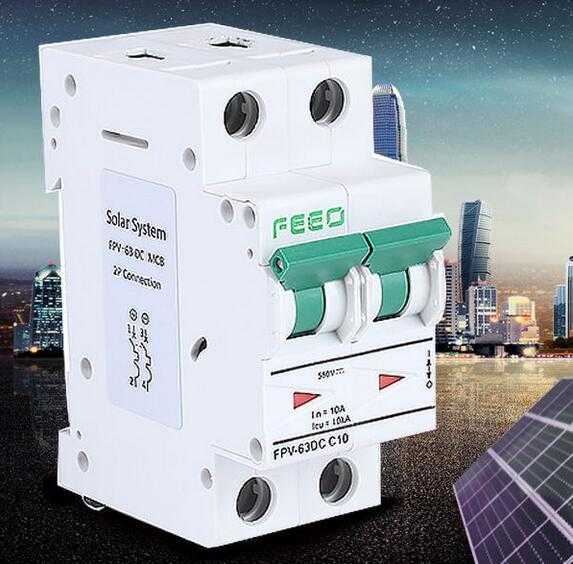

Sun Power Switch Dp 500V 2pole Low Voltage Mini Circuit Breaker

FPV-63 Solar system DC MCB , apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.

Product Details Company Profile

Description

Model NO.: FPV-63
Operation: Electric Type
Arc-extinguishing Medium: Air
Structure: MCB
Type: Mini
Standard: IEC/En60947
Transport Package: Standard Export Box Package
Origin: Zhejiang China

Breaking Capacity: Low Voltage Circuit Breakers
Speed: Normal Type Circuit Breaker
Installation: DIN Rail
Poles Number: 2
Certification: CE, CCC
Trademark: FEEO
Specification: CE ISO9001
HS Code: 8536200000

Mini Circuit Breaker Application:

FPV-63 Solar system DC MCB , apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.

Mini Circuit Breaker Features:
1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing
2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker
4. Safety handle, classic original design, ergonomic

Mini Circuit Breaker Parameters:

Item	Mini Circuit Breaker
Code	FPV-63
Pole	1P	2P	3P	4P
Voltage	250VDC	550VDC	750VDC	1000VDC
Current	1A,3A,6A,10A,16A,20A,32A,40,50A,63A
Standard	IEC/EN60947
Breaking Capacity	6KA,10KA
Characteristic Curve	B,C,D
Working Temperature	"-5°"to +40°
Protection Degree	IP20
Electrical life	More than 8000times
Mechanical life	More than 2000times
Dimension(W)X(H)X(D)	18X80X71	36X80X71	54X80X71	72X80X71
Installation	35MM DIN RAIL
Accessory	YES
Installation Altitude	≤2000M
