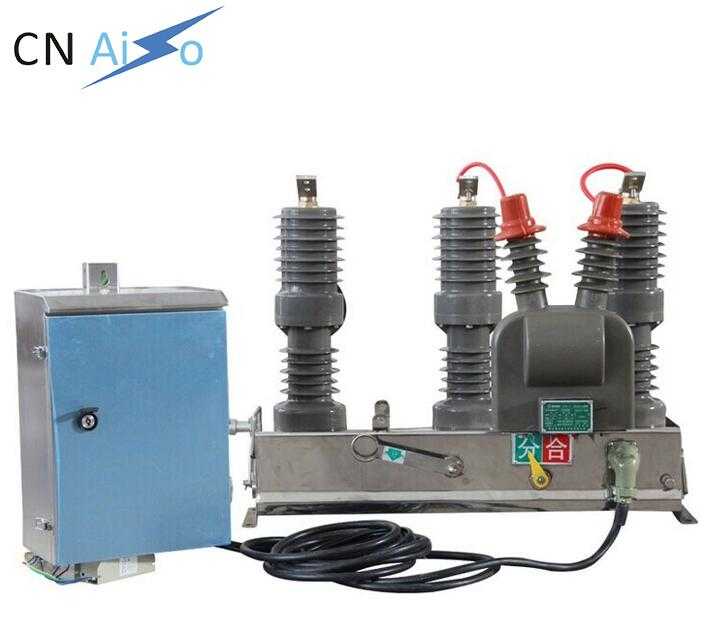

ZW32M-12 outdoor types parts of vacuum circuit breaker switch

ZW32M-12 type outdoor high voltage vacuum circuit breaker is rated voltage 12kV, three-phase AC 50Hz outdoor distribution equipment, which is mainly used for breaking, closing power system load current, overload current, short-circuit current.

Product Details Company Profile

Description

Place of Origin: Zhejiang, China (Mainland)
Brand Name: AISO/OEM
Model Number: ZW32M-12
Type: Vacuum, Outdoor,circuit breaker switch
Poles Number: 3
Product: 12kV Vacuum Circuit Breaker switch
Rated Voltage: 12KV
Rated current: 630A/1250A
Rated frequency: 50Hz
Rated short-circut breaking time: 30times
Mechanical life: 10000Times
Uses: High voltage
Standard: GB1984-89
Customized: Accept special order

Product Structure

ZW32M-12 type outdoor high voltage vacuum circuit breaker is rated voltage 12kV, three-phase AC 50Hz outdoor distribution equipment, which is mainly used for breaking, closing power system load current, overload current, short-circuit current. For substation and industrial and mining enterprises distribution system for the protection and control of the role and place of rural power grids frequent operation.
The circuit breaker has small size, light weight, anti-condensation, maintenance-free characteristics, can adapt to poor weather conditions and dirty environments.
The models with permanent magnet operation mechanism operates: since the permanent action energy operating mechanism provided by a permanent magnet, the switch quickly to keep the points off position, a small number of mechanical parts, mechanical transmission chain is short, thus greatly improving the switch reliability and mechanical life.

Technical parameters

Item	Description			Unit	Data
1	Rated voltage			KV	12
2	Rated insulation level	1min withstand voltage	Dry	KV	42
			Wet		34
		Lightning impulse withstand voltage(peak)			75
3	Rated current			A	630 400 200
4	Rated break current on shorting			KA	20 16 12.5
5	Rated operating sequence				OC-0.3s-CO-180S-CO
6	Open circuit times of rated short dropout current			Times	30
7	Rated short circuit making current			KA	50
8	Rated peak withstand current
9	Rated shorting withstand current			KA	20
10	Rated duration of short-circuit			S	4
11	Opening time (shunt trip)		Max operating voltage	ms	15~50
			Rated operating voltage
			Min. operating voltage		30~60
12	Closing time			ms	25~50
13	Total breaking time				≤100
14	Arcing time				≤20
15	Mechanical life			Times	10,000
16	Rated input power of energy storge motor			W	40
17	Rated operating voltage and secondary circuit rated voltage			V	DC220 110 24
					AC220 110 24
18	Energy storage tome Under rated voltage			S	≤10
19	Over-current release		Rated current	A	5
			The accuracy grade of tripping current	%	±10
