Place of Origin: Hubei, China (Mainland) Brand Name: Zhongke Model Number: HS700 Sampling frequency: 400Mhz GSM: GSM Global Positioning WIFI: Connect to Internet through WIFI Touch screen: Resistive touch screen, resistant of water and oil, sensitive touch Scan type: A/B/C Scan Power Supply and Voltage: Lithium Battery 8.4v10Ah continuously work for 8 hours Size: 266x164x45 mm including battery Weight: About 1.5kg including battery Gain Range: 0dB - 120dB Full Name: HS700 Touch Screen GSM WIFI A/B/C-scan Ultrasonic Flaw Detector
Packaging & Delivery

Packaging Details: Military industrial plastic box
Zhongke HS700 Portable Touch Screen GSM WIFI A/B/C-scan Ultrasonic Flaw Detector
Delivery Detail: 2-4 weeks
Product Description

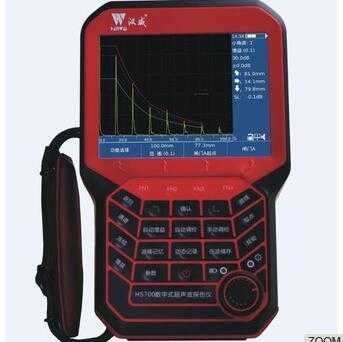

Zhongke HS700 Portable Touch Screen GSM WIFI A/B/C-scan Ultrasonic Flaw Detector

Zhongke Innovation Technology Co., Ltd. is a professional manufacturer of NDT equipments with independent intellectual property rights. Zhongke has been working on R&D of Ultrasonic technology for over 30 years. Now Zhoneke has different series of NDT products, such as Phased Array Detector, TOFD Detector, Conventional Ultrasonic Flaw Detector, EMAT Detector and Online Automatic Inspection Systems for Pipe, Tube, Plate, Bars, Vessel, Automobile Parts and etc. Zhongke also has committed to provide the customers with various kinds of all-round, efficient, steady, reliable ultrasonic solutions!

HS 700 Performance Features

● 400Mhz sampling frequency Higher reduction degree
● Connect to Internet through WIFI , reach the cloud detection
● GSM Global Positioning , capable of real-time positioning by mobile phone APP
● Resistive touch screen, resistant of water and oil, sensitive touch
● With B scan detection function

HS 700 Technical Parameters
● Pulse Type: Negative square wave pulse
● Transmit Pulse voltage
● Pulse Front: <10 ns
● Pulse Width : 50 ns-500ns continuously adjustable
● Impedance Matching : 50Ω /500Ω adjustable
● Sampling Frequency/Digits: 400MHz/10bits
● Sampling Depth: 512
● Repetition Frequency: 15-1000Hz adjustable
● Curve detection mode : Digital
● Precision of Attenuator: <+1dB/12dB
● Gain Range : 0dB- 120dB
● Sound Velocity Range : 300~20000 m/s
● Dynamic Range : ≥30dB
● Signal Bandwidth : 0.5MHz- 25MHz
● Vertical Linearity error : ≤3%
● Horizontal Linearity : ≤0.3%
● Resolution : >36dB
● Surplus Sensitivity : >60dB(depth 200mmΦ2 flat-bottom hole)
● Curve Display Mode ：Radio-frequency wave, wave demodulation (whole wave, negative and positive half wave demodulation)
● Output: WIFI，USB2.0，VGA
● Display Screen : Highlight true color 640×480 Daylight readable LCD, Maxium A scan size 115.2×86.4 mm
● Control: Front panel sealed keyboard, shuttle, and touch screen
● Size : 266×164×45 mm including battery
● Power Supply and Voltage : Lithium Battery 8.4v10Ah continuously work for 8 hours
● Environment Temperature : (-10-40)℃ (reference value)
● Relative Humidity : (20-95)%RH
● Weight : About 1.5kg including battery

Application:
-Weld inspection
-Aerospace industry
-Nuclear Industry
-Shipbuilding industry
-Arsenal
-Electric Power Industry
-Petroleum Industry
-Chemical industry
